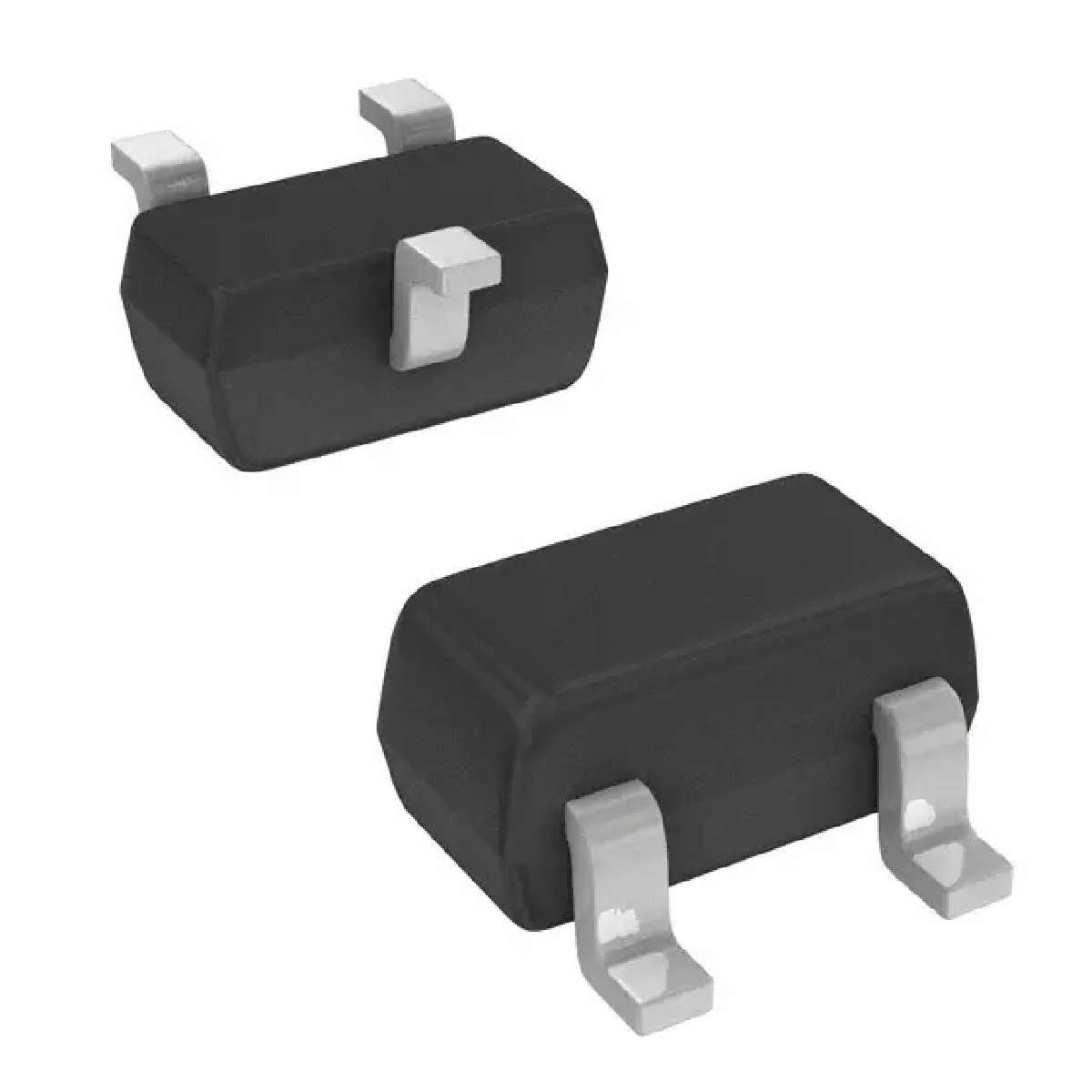

Diode Schottky 70V 0.07A 3Pin SOT-523 T/R
Diode Array 1 Pair Common Cathode Schottky 70V 70mA DC Surface Mount SOT-523
立创商城:
70V 70mA 1V@15mA
得捷:
DIODE ARRAY SCHOTTKY 70V SOT523
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a Schottky diode BAS70-05T-7-F rectifier from Diodes Zetex. Its maximum power dissipation is 150 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its peak non-repetitive surge current is 0.1 A, while its maximum continuous forward current is 0.07 A. It is made in a dual common cathode configuration. This rectifier has a minimum operating temperature of -55 °C and a maximum of 125 °C.
安富利:
Diode Schottky 70V 0.07A 3-Pin SOT-523 T/R
Chip1Stop:
Diode Schottky 70V 0.07A 3-Pin SOT-523 T/R
Verical:
Diode Schottky 70V 0.07A Automotive 3-Pin SOT-523 T/R
Win Source:
DIODE ARRAY SCHOTTKY 70V SOT523
额定功率 200 mW
正向电压 1 V
耗散功率 150 mW
反向恢复时间 5 ns
正向电流 0.07 A
最大正向浪涌电流(Ifsm) 0.1 A
正向电压Max 1V @15mA
正向电流Max 0.07 A
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 150 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-523-3
长度 1.6 mm
宽度 0.8 mm
高度 0.75 mm
封装 SOT-523-3
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BAS70-05T-7-F Diodes 美台 | 当前型号 | 当前型号 |
BAS70-05T-7 美台 | 完全替代 | BAS70-05T-7-F和BAS70-05T-7的区别 |
BAS70-05-7-F 美台 | 功能相似 | BAS70-05T-7-F和BAS70-05-7-F的区别 |
BAS70-05-7 美台 | 功能相似 | BAS70-05T-7-F和BAS70-05-7的区别 |
