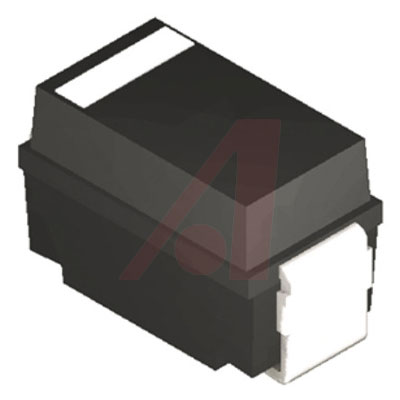

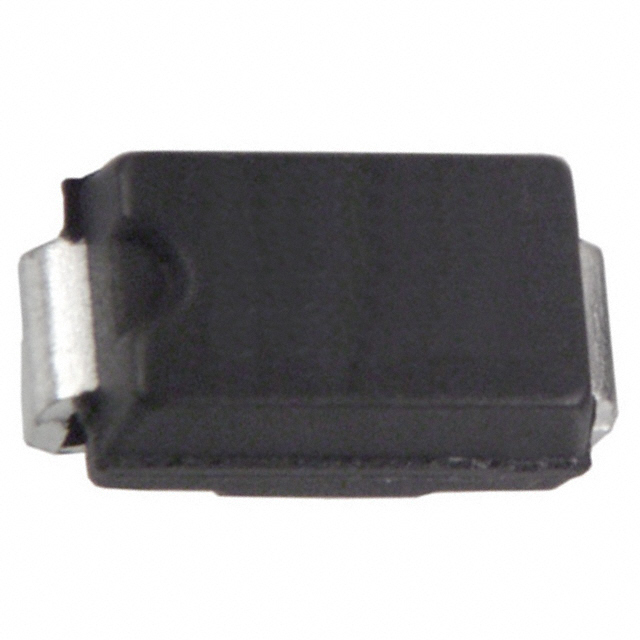

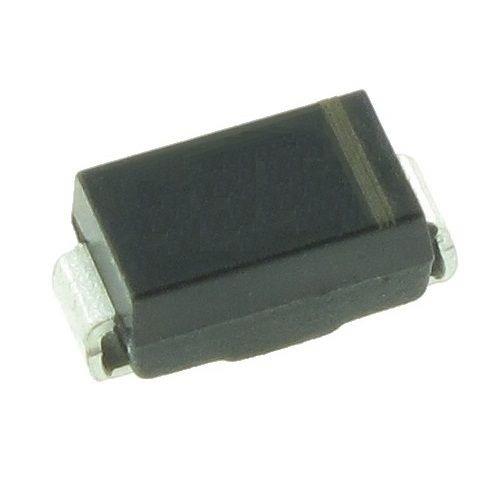

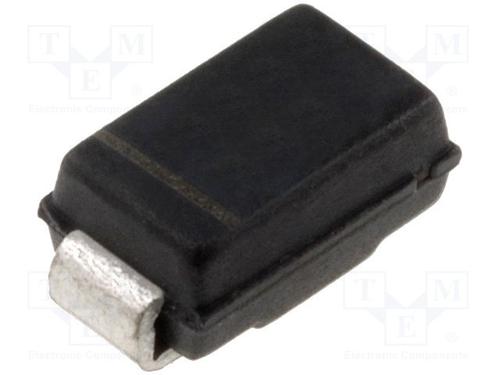

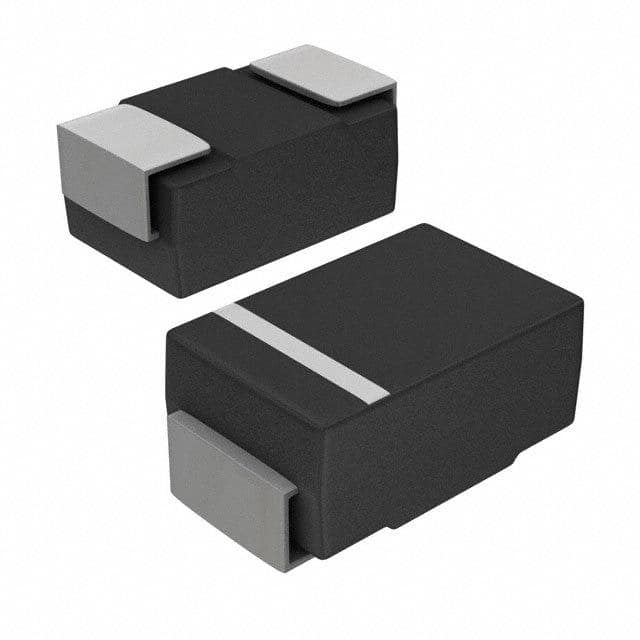

B350A 系列 50 V 3 A 表面贴装 肖特基 势垒 整流器 - SMA
B350A Series 50 V 3 A Surface Mount Schottky Barrier Rectifier - SMA
得捷:
DIODE SCHOTTKY 50V 3A SMA
立创商城:
50V 3A 700mV@3A
e络盟:
肖特基整流器, 50 V, 3 A, 单, DO-214AC SMA, 2 引脚, 700 mV
艾睿:
Converting from AC to DC is simple when using a Schottky diode B350A-13-F rectifier from Diodes Zetex. Its maximum power dissipation is 850 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its peak non-repetitive surge current is 80 A, while its maximum continuous forward current is 3 A. This rectifier has a minimum operating temperature of -55 °C and a maximum of 150 °C. It is made in a single configuration.
Allied Electronics:
Diode Schottky 50V 3A 2Pin SMA
安富利:
Diode Schottky 50V 3A 2-Pin SMA T/R
Chip1Stop:
Diode Schottky 50V 3A Automotive 2-Pin SMA T/R
TME:
Diode: Schottky rectifying; SMD; 50V; 3A; 850mW; SMA
Verical:
Rectifier Diode Schottky 50V 3A 2-Pin SMA T/R
Newark:
# DIODES INC. B350A-13-F Schottky Rectifier, 50 V, 3 A, Single, DO-214AC, 2 Pins, 700 mV
儒卓力:
**SCHOTTKY-DIODE 3A 50V SMA **
Win Source:
DIODE SCHOTTKY 50V 3A SMA
额定电压DC 50.0 V
额定电流 3.00 A
电容 200 pF
额定功率 850 mW
输出电流 ≤3.00 A
负载电流 3 A
针脚数 2
正向电压 0.7 V
极性 Standard
耗散功率 850 mW
反向恢复时间 27 ns
正向电流 3 A
最大正向浪涌电流(Ifsm) 80 A
正向电压Max 700 mV
正向电流Max 3 A
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 850 mW
安装方式 Through Hole
引脚数 2
封装 DO-214AC
宽度 2.92 mm
封装 DO-214AC
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, Industrial, 工业, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
B350A-13-F Diodes 美台 | 当前型号 | 当前型号 |
B350-13-F 美台 | 类似代替 | B350A-13-F和B350-13-F的区别 |
B350B-13-F 美台 | 类似代替 | B350A-13-F和B350B-13-F的区别 |
SK35-7-F 美台 | 类似代替 | B350A-13-F和SK35-7-F的区别 |
