DIODES INC. BC817-40W-7 单晶体管 双极, NPN, 45 V, 100 MHz, 200 mW, 500 mA, 250 hFE
- 双极 BJT - 单 NPN 100MHz 表面贴装型 SOT-323
得捷:
TRANS NPN 45V 0.5A SOT323
立创商城:
NPN 45V 500mA
e络盟:
单晶体管 双极, NPN, 45 V, 100 MHz, 200 mW, 500 mA, 250 hFE
艾睿:
This specially engineered NPN BC817-40W-7 GP BJT from Diodes Zetex comes with a variety of characteristics including absolute maximum ratings, thermal characteristics, and DC and AC electrical characteristics. This bipolar junction transistor&s;s maximum emitter base voltage is 5 V. Its maximum power dissipation is 200 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a maximum collector emitter voltage of 45 V and a maximum emitter base voltage of 5 V. This bipolar junction transistor has a minimum operating temperature of -65 °C and a maximum of 150 °C.
Allied Electronics:
Trans GP BJT NPN 45V 1A 3Pin SOT323
安富利:
Trans GP BJT NPN 45V 0.5A 3-Pin SOT-323 T/R
Chip1Stop:
Trans GP BJT NPN 45V 0.5A 3-Pin SOT-323 T/R
Verical:
Trans GP BJT NPN 45V 0.5A Automotive 3-Pin SOT-323 T/R
Newark:
# DIODES INC. BC817-40W-7 Bipolar BJT Single Transistor, NPN, 45 V, 100 MHz, 200 mW, 500 mA, 250 hFE
DeviceMart:
TRANS NPN BIPOLAR 45V SC70-3
Win Source:
TRANS NPN 45V 0.5A SC70-3
频率 100 MHz
针脚数 3
极性 NPN
耗散功率 200 mW
击穿电压集电极-发射极 45 V
集电极最大允许电流 0.5A
最小电流放大倍数hFE 250 @100mA, 1V
额定功率Max 200 mW
直流电流增益hFE 250
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 3

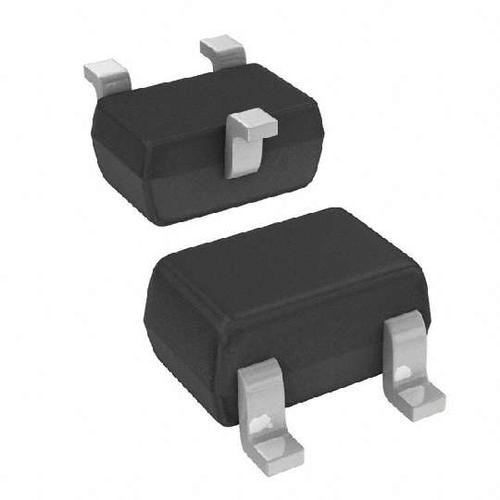

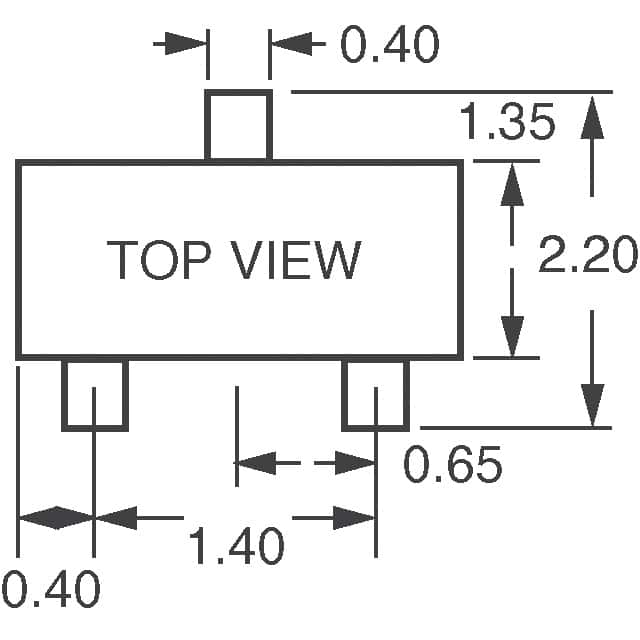

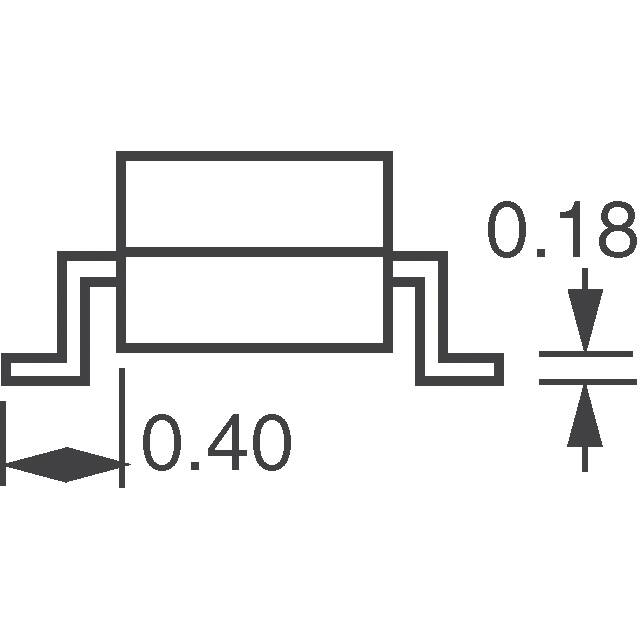

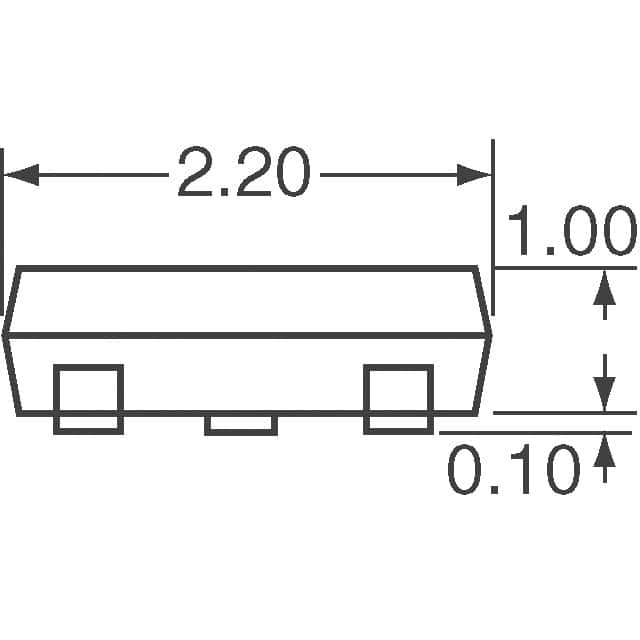

封装 SOT-323-3
封装 SOT-323-3
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用, 国防, 电源管理, 工业, 军用与航空
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BC817-40W-7 Diodes 美台 | 当前型号 | 当前型号 |
BC817-40W,115 恩智浦 | 类似代替 | BC817-40W-7和BC817-40W,115的区别 |
BC817-25W,115 恩智浦 | 功能相似 | BC817-40W-7和BC817-25W,115的区别 |
BC817W 恩智浦 | 功能相似 | BC817-40W-7和BC817W的区别 |
