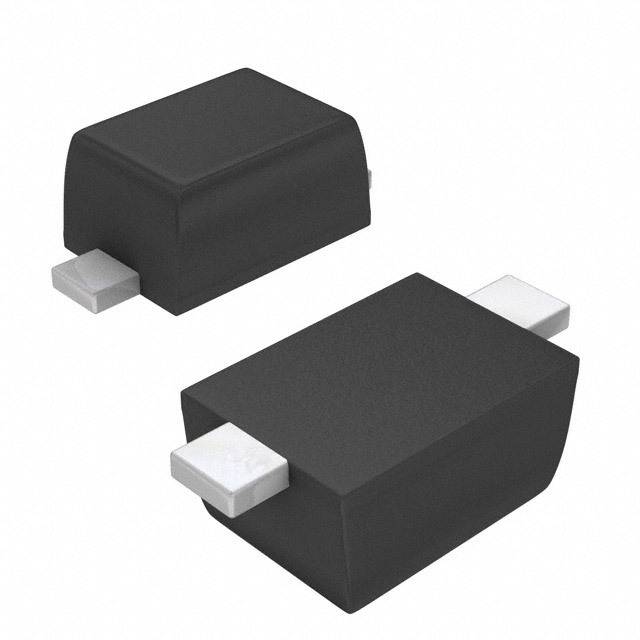

Diode Zener Single 18V 2% 350mW Automotive 2Pin SOD-523 T/R
If you need a diode to operate in the reverse breakdown region then use a voltage regulator zener diode from Zetex. Its maximum power dissipation is 350 mW. Its test current is 5 mA. Its maximum leakage current is 0.05 μA. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This zener device has a nominal voltage of 18 V and a voltage tolerance of 2%. It is made in a single configuration. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C.
容差 ±2 %
正向电压 1.1V @100mA
耗散功率 0.35 W
测试电流 5 mA
稳压值 18 V
正向电压Max 1.1V @100mA
额定功率Max 350 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 350 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-523
封装 SOD-523
工作温度 -65℃ ~ 150℃
温度系数 16.9 mV/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
