BZT52C39S-7-F 编带

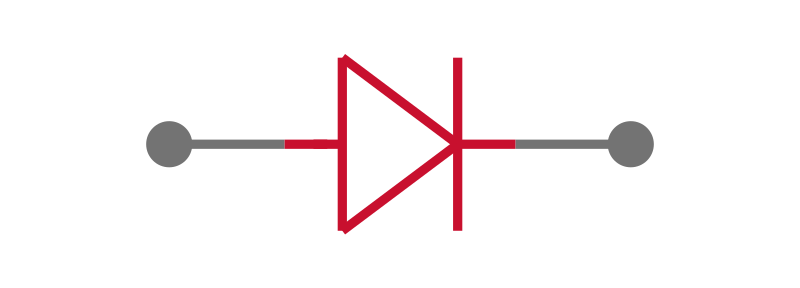

This zener diode from Zetex is perfect for your circuit requiring a diode to operate in the reverse-breakdown region. Its maximum leakage current is 0.1 μA. Its test current is 2 mA. Its maximum power dissipation is 200 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This zener device has a nominal voltage of 39 V and a voltage tolerance of 5%. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. It is made in a single configuration.
额定电压DC 39.0 V
容差 ±5 %
额定功率 200 mW
输出电流 ≤50.0 mA
正向电压 900mV @10mA
耗散功率 200 mW
测试电流 2 mA
稳压值 39 V
正向电压Max 900mV @10mA
额定功率Max 200 mW
工作温度Max 150 ℃
工作温度Min 65 ℃
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 2

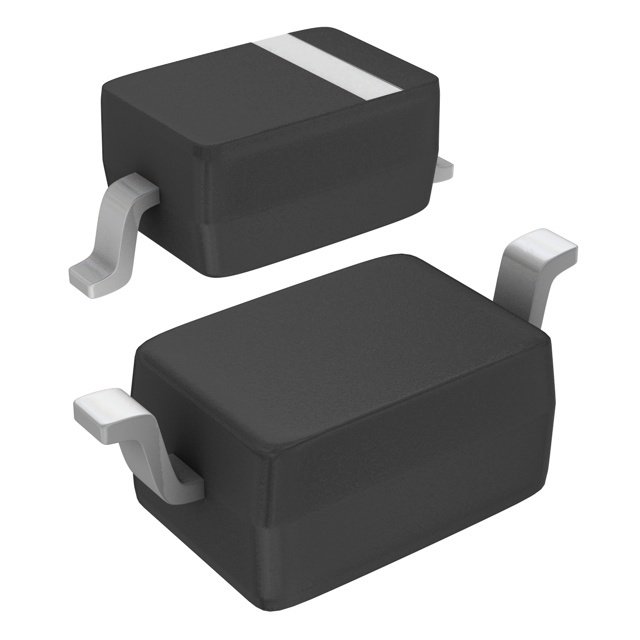

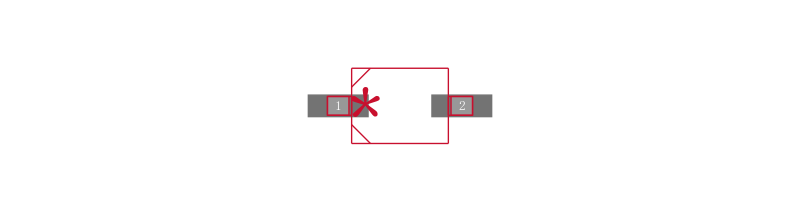

封装 SOD-323
长度 1.8 mm
宽度 1.4 mm
高度 1 mm
封装 SOD-323
工作温度 -65℃ ~ 150℃
温度系数 33.4 mV/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BZT52C39S-7-F Diodes 美台 | 当前型号 | 当前型号 |
BZT52C39S-7 美台 | 完全替代 | BZT52C39S-7-F和BZT52C39S-7的区别 |
MMSZ5259BS-7-F 美台 | 类似代替 | BZT52C39S-7-F和MMSZ5259BS-7-F的区别 |
DDZ9716S-7 美台 | 类似代替 | BZT52C39S-7-F和DDZ9716S-7的区别 |
