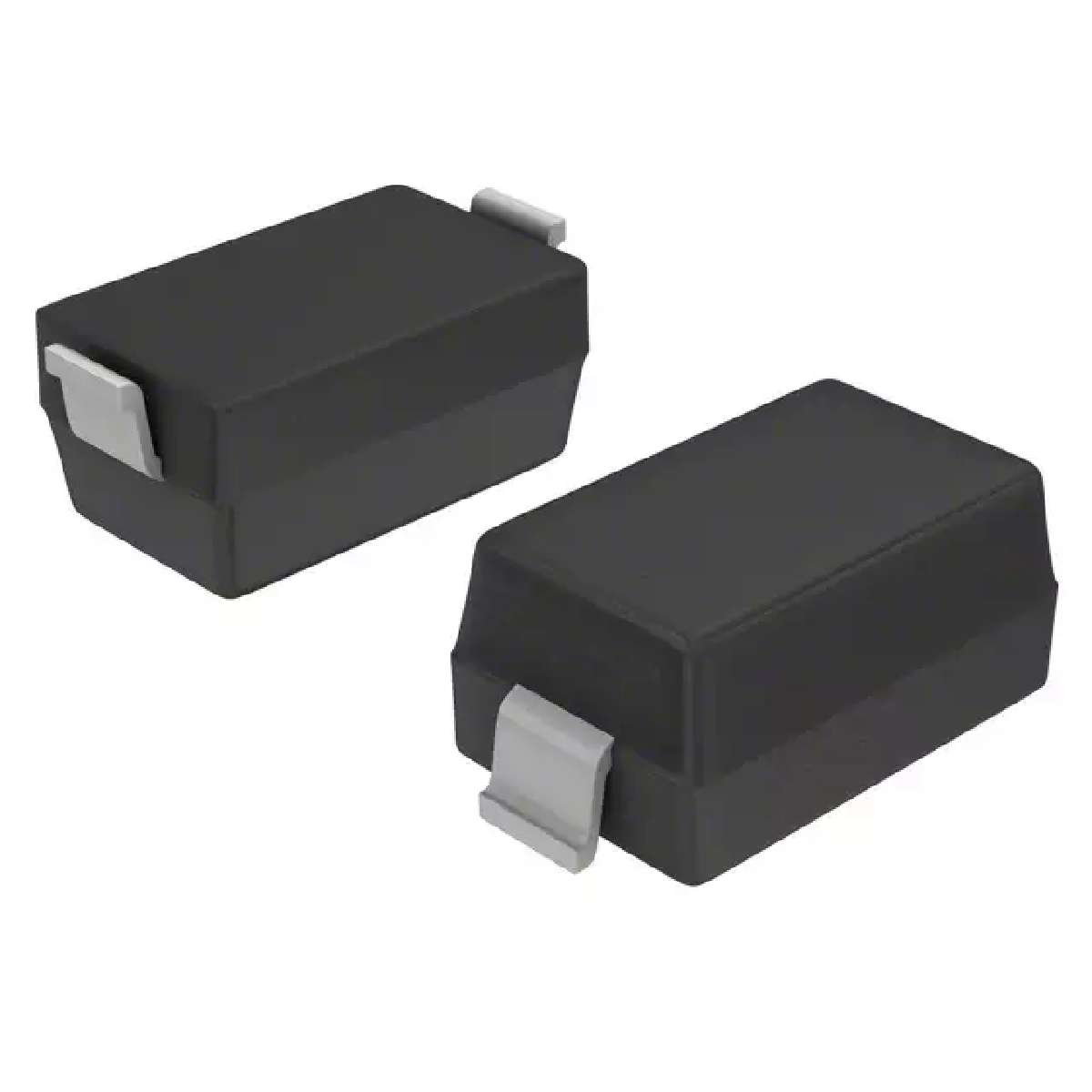

Diode Zener Single 8.2V 6% 370mW Automotive 2Pin SOD-123 T/R
Features
• Planar Die Construction
• 500mW Power Dissipation
• General Purpose, Medium Current
• Ideally Suited for Automated Assembly Processes
• Totally Lead-Free & Fully RoHS Compliant
• Halogen and Antimony Free. “Green” Device
• Qualified to AEC-Q101 Standards for High Reliability
立创商城:
8.2V 370mW
得捷:
DIODE ZENER 8.2V 370MW SOD123
艾睿:
Check out this perfect BZT52C8V2-13-F zener diode from Diodes Zetex for operating in the reverse breakdown region. Its maximum leakage current is 0.7 μA. Its maximum power dissipation is 370 mW. Its test current is 5 mA. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This zener diode has an operating temperature range of -65 °C to 150 °C. This zener device has a nominal voltage of 8.2 V and a voltage tolerance of 6%. It is made in a single configuration.
安富利:
Diode Zener Single 8.2V 6% 370mW 2-Pin SOD-123 T/R
TME:
Diode: Zener; 370mW; 8.2V; SMD; reel, tape; SOD123
Verical:
Diode Zener Single 8.2V 6.1% 500mW 2-Pin SOD-123 T/R
Win Source:
DIODE ZENER 8.2V 500MW SOD123
容差 ±6 %
额定功率 500 mW
正向电压 900mV @10mA
耗散功率 0.5 W
测试电流 5 mA
稳压值 8.2 V
正向电压Max 900mV @10mA
额定功率Max 370 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 370 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-123
封装 SOD-123
工作温度 -65℃ ~ 150℃
温度系数 4.7 mV/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BZT52C8V2-13-F Diodes 美台 | 当前型号 | 当前型号 |
BZT52C8V2-7-F 美台 | 类似代替 | BZT52C8V2-13-F和BZT52C8V2-7-F的区别 |
BZT52C8V2 美台 | 类似代替 | BZT52C8V2-13-F和BZT52C8V2的区别 |
MMSZ4694T1G 安森美 | 功能相似 | BZT52C8V2-13-F和MMSZ4694T1G的区别 |
