BAS70DW-04-7-F 编带
The is a Schottky Barrier Diode Array designed with low leakage performance in a variety of configurations. This reduces component placement costs by requiring only one component. It comes encapsulated in a moulded plastic case. It has matte tin lead-free plating annealed over alloy 42 lead frame terminals and PN junction guard ring for transient and ESD protection. It is ideally suited to use as polarity protection diode, rail-to-rail data line protection for two data lines, multiplexing circuits, high-efficiency, low-current bridge rectifier circuits, re-circulating diode, switching diode.
额定电压DC 70.0 V
额定电流 70.0 mA
电容 2.00 pF
额定功率 200 mW
针脚数 6
正向电压 1 V
耗散功率 200 mW
反向恢复时间 5 ns
正向电流 15 mA
最大正向浪涌电流(Ifsm) 100 mA
正向电压Max 1 V
正向电流Max 70 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 6

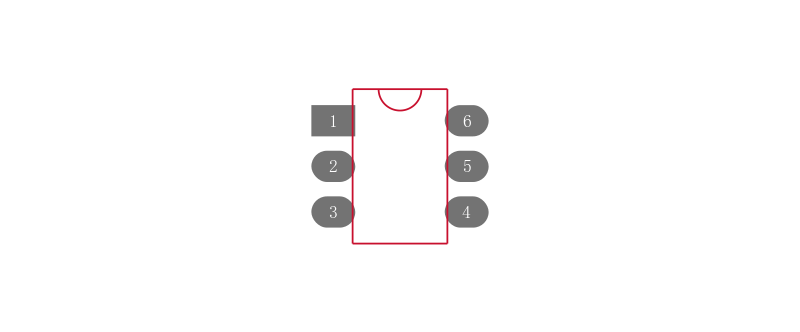

封装 SC-70-6
长度 2.2 mm
宽度 1.35 mm
高度 1 mm
封装 SC-70-6
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BAS70DW-04-7-F Diodes 美台 | 当前型号 | 当前型号 |
BAS70DW-04-7 美台 | 类似代替 | BAS70DW-04-7-F和BAS70DW-04-7的区别 |
BAS7004SH6327XTSA1 英飞凌 | 功能相似 | BAS70DW-04-7-F和BAS7004SH6327XTSA1的区别 |
BAS70XY 恩智浦 | 功能相似 | BAS70DW-04-7-F和BAS70XY的区别 |
