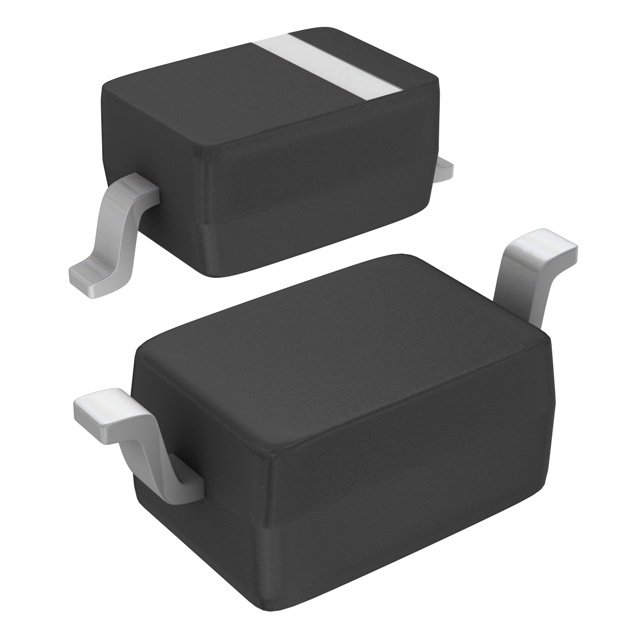

BAV19WS 系列 2.5 A 120 V 200 mW 表面贴装 快速 开关 二极管 - SOD-323
BAV19WS Series 2.5 A 120 V 200 mW Surface Mount Fast Switching Diode - SOD-323
得捷:
DIODE GEN PURP 100V 200MA SOD323
立创商城:
100V 200mA 50ns
艾睿:
Switch from an AC voltage to a DC voltage using a switching diode BAV19WS-7-F rectifier from Diodes Zetex. Its maximum power dissipation is 200 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its peak non-repetitive surge current is 2.5 A, while its maximum continuous forward current is 0.2 A. This rectifier has an operating temperature range of -65 °C to 150 °C. It is made in a single configuration.
Allied Electronics:
Diode Switching 120V 0.2A 2Pin SOD323
安富利:
Diode Switching 120V 0.2A 2-Pin SOD-323 T/R
Chip1Stop:
Diode Switching 120V 0.2A Automotive 2-Pin SOD-323 T/R
Verical:
Rectifier Diode Small Signal Switching 120V 0.25A 50ns 2-Pin SOD-323 T/R
Win Source:
DIODE GEN PURP 100V 200MA SOD323
额定电压DC 100 V
额定电流 200 mA
电容 5.00 pF
额定功率 200 mW
输出电流 ≤200 mA
针脚数 2
正向电压 1.25V @200mA
极性 Standard
耗散功率 200 mW
热阻 625℃/W RθJA
反向恢复时间 50 ns
正向电流 250 mA
最大正向浪涌电流（Ifsm） 9 A
正向电压Max 1.25V @200mA
正向电流Max 250 mA
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-323
高度 1.05 mm
封装 SOD-323
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BAV19WS-7-F Diodes 美台 | 当前型号 | 当前型号 |
BAV19WS-TP 美微科 | 功能相似 | BAV19WS-7-F和BAV19WS-TP的区别 |
BAV19WS-V-GS08 威世 | 功能相似 | BAV19WS-7-F和BAV19WS-V-GS08的区别 |
BAV19WS 威世 | 功能相似 | BAV19WS-7-F和BAV19WS的区别 |
