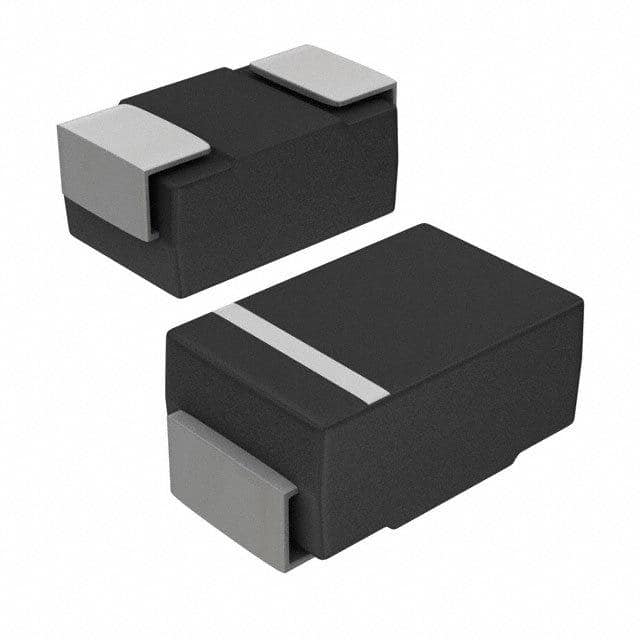

B250A 系列 50 V 2 A 表面贴装 肖特基势垒整流器 - DO-214AC
Diode Schottky 50V 2A Surface Mount SMA
得捷:
DIODE SCHOTTKY 50V 2A SMA
立创商城:
50V 2A 700mV@2A
贸泽:
Schottky Diodes & Rectifiers 50V 2A
艾睿:
Converting from AC to DC is simple when using a Schottky diode B250A-13-F rectifier from Diodes Zetex. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its peak non-repetitive surge current is 50 A, while its maximum continuous forward current is 2 A. This rectifier has an operating temperature range of -65 °C to 150 °C. It is made in a single configuration.
Allied Electronics:
Diode Schottky 50V 2A 2Pin SMA
安富利:
Diode Schottky 50V 2A 2-Pin SMA T/R
Chip1Stop:
Diode Schottky 50V 2A Automotive 2-Pin SMA T/R
Verical:
Rectifier Diode Schottky 50V 2A 2-Pin SMA T/R
儒卓力:
**SCHOTTKY-DIODE 2A 50V SMA **
额定电压DC 50.0 V
额定电流 2.00 A
电容 200 pF
输出电流 ≤2.00 A
针脚数 2
正向电压 0.7 V
极性 Standard
热阻 25℃/W RθJL
反向恢复时间 3 ns
正向电流 2 A
最大正向浪涌电流(Ifsm) 50 A
正向电压Max 700mV @2A
正向电流Max 2000 mA
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 SMA
长度 4.6 mm
宽度 2.92 mm
高度 2.1 mm
封装 SMA
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
B250A-13-F Diodes 美台 | 当前型号 | 当前型号 |
B250-13-F 美台 | 类似代替 | B250A-13-F和B250-13-F的区别 |
B250A-13 美台 | 类似代替 | B250A-13-F和B250A-13的区别 |
VS-15MQ040NTRPBF 威世 | 功能相似 | B250A-13-F和VS-15MQ040NTRPBF的区别 |
