DiodesZetex BZX84B3V0-7-F 1 齐纳二极管, 单路, 3V 2% 350 mW 表面贴装 3-Pin SOT-23
This zener diode from Zetex is perfect for your circuit requiring a diode to operate in the reverse-breakdown region. Its test current is 5 mA. Its maximum leakage current is 10 μA. Its maximum power dissipation is 350 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This zener device has a nominal voltage of 3 V and a voltage tolerance of 2%. It is made in a single configuration. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C.
容差 ±2 %
额定功率 350 mW
正向电压 900mV @10mA
耗散功率 350 mW
测试电流 5 mA
稳压值 3 V
正向电压Max 900mV @10mA
额定功率Max 300 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 350 mW
安装方式 Surface Mount
引脚数 3

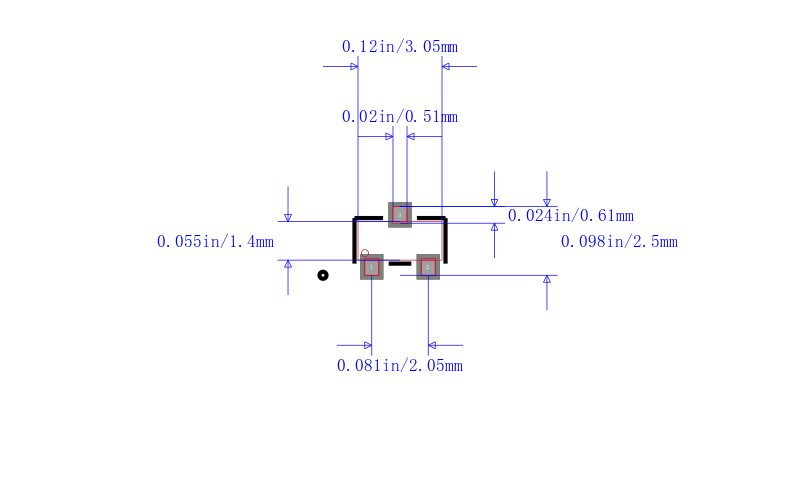

封装 SOT-23-3
长度 2.9 mm
宽度 2.4 mm
高度 1 mm
封装 SOT-23-3
工作温度 -65℃ ~ 150℃
温度系数 0 mV/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BZX84B3V0-7-F Diodes 美台 | 当前型号 | 当前型号 |
BZX84B3V0Q-7-F 美台 | 完全替代 | BZX84B3V0-7-F和BZX84B3V0Q-7-F的区别 |
BZX84-B3V0 恩智浦 | 功能相似 | BZX84B3V0-7-F和BZX84-B3V0的区别 |
