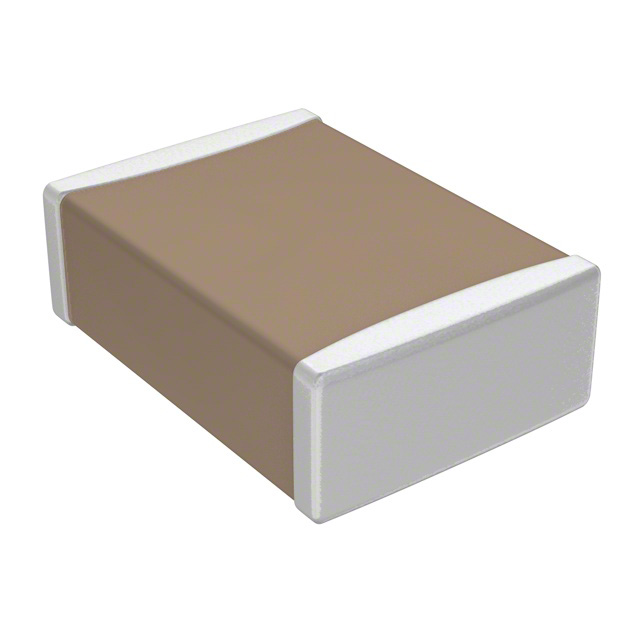

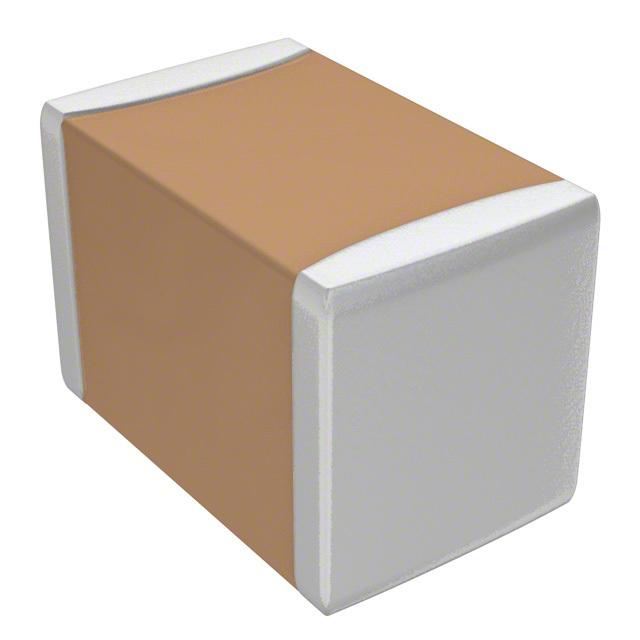

0805 10uF ±20% 25V -B
10 µF ±20% 25V 陶瓷器 JB 0805（2012 公制）
得捷:
CAP CER 10UF 25V JB 0805
艾睿:
Do you need a capacitor with a large capacitance but in a small package? Then you must be looking for this C2012JB1E106M125AB multilayer ceramic capacitor from TDK! It can withstand a voltage of 25 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has a tolerance of 20%. Its capacitance value is 10uF. This product is 2 mm long, 1.25 mm tall and 1.25 mm deep.
额定电压DC 25.0 V
电容 10 µF
容差 ±20 %
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压 25 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2.00 mm
宽度 1.2 mm
高度 1.25 mm
封装公制 2012
封装 0805
厚度 1.25 mm
材质 -B/-25℃~+85℃
介质材料 Ceramic Multilayer
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 3000
制造应用 Commercial Grade, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
C2012JB1E106M125AB TDK 东电化 | 当前型号 | 当前型号 |
C2012JB1E106M085AC 东电化 | 完全替代 | C2012JB1E106M125AB和C2012JB1E106M085AC的区别 |
C2012JB1E106K125AB 东电化 | 类似代替 | C2012JB1E106M125AB和C2012JB1E106K125AB的区别 |
C2012JB1V106K085AC 东电化 | 功能相似 | C2012JB1E106M125AB和C2012JB1V106K085AC的区别 |
