CD4001UBPW

CD4001UBPW图片1
CD4001UBPW图片2
CD4001UBPW图片3
CD4001UBPW图片4
CD4001UBPW图片5
CD4001UBPW图片6
CD4001UBPW图片7
CD4001UBPW图片8
CD4001UBPW图片9
CD4001UBPW图片10
CD4001UBPW图片11
CD4001UBPW概述

CMOS四路2输入或非门 CMOS Quad 2-Input NOR Gate

NOR Gate IC 4 Channel 14-TSSOP


得捷:
IC GATE NOR 4CH 2-INP 14TSSOP


立创商城:
CD4001UBPW


德州仪器TI:
4-ch, 2-input, 3-V to 18-V NOR gates


艾睿:
CD4001UBPW logic gates from Texas Instruments are designed specifically to be interconnected and create a variety of different logic-based circuits. This gate has a minimum operating temperature of -55 °C and a maximum of 125 °C. This device comes in tube packaging. This device has a typical operating supply voltage of 3.3|5|9|12|15 V. Its minimum operating supply voltage of 3 V, while its maximum is 18 V.


安富利:
NOR Gate 4-Element 2-IN CMOS 14-Pin TSSOP Tube


Chip1Stop:
NOR Gate 4-Element 2-IN CMOS 14-Pin TSSOP Tube


Verical:
NOR Gate 4-Element 2-IN CMOS 14-Pin TSSOP Tube


CD4001UBPW中文资料参数规格
技术参数

电源电压DC 3.00V ~ 18.0V

输出接口数 1

输出电流 6.8 mA

电路数 4

位数 4

传送延迟时间 200 ns

电压波节 5.00 V, 10.0 V, 15.0 V

逻辑门个数 4

输出电流驱动 -1.00 mA

输入数 2

工作温度Max 125 ℃

工作温度Min -55 ℃

电源电压 3V ~ 18V

电源电压Max 18 V

电源电压Min 3 V

封装参数

安装方式 Surface Mount

引脚数 14

封装 TSSOP-14

外形尺寸

封装 TSSOP-14

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

CD4001UBPW引脚图与封装图

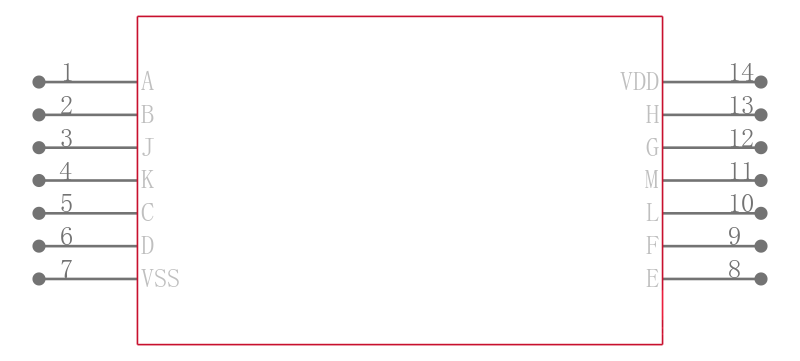

CD4001UBPW引脚图
CD4001UBPW封装图

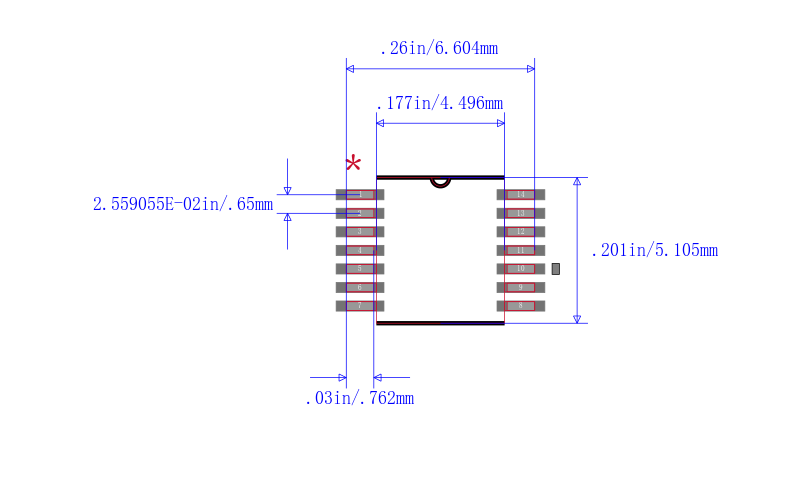

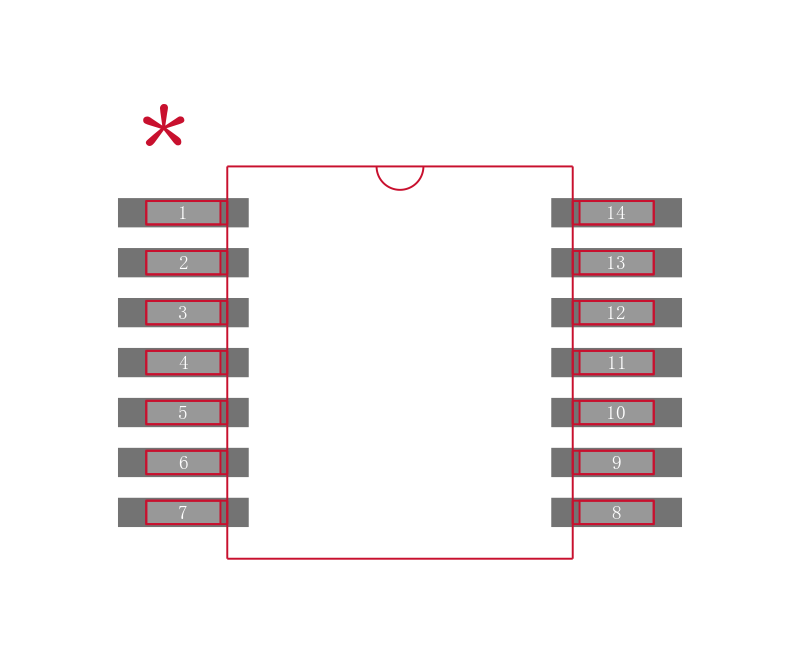

CD4001UBPW封装焊盘图
在线购买CD4001UBPW
型号: CD4001UBPW
制造商: TI 德州仪器
描述:CMOS四路2输入或非门 CMOS Quad 2-Input NOR Gate
替代型号CD4001UBPW
型号/品牌 代替类型 替代型号对比

CD4001UBPW

TI 德州仪器

当前型号

当前型号

CD4001BPW

德州仪器

类似代替

CD4001UBPW和CD4001BPW的区别
