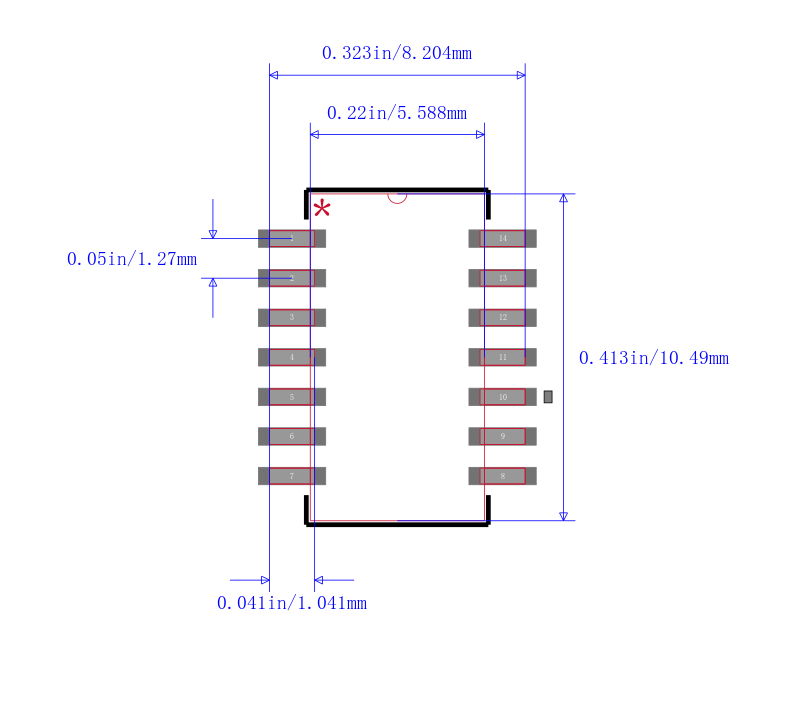

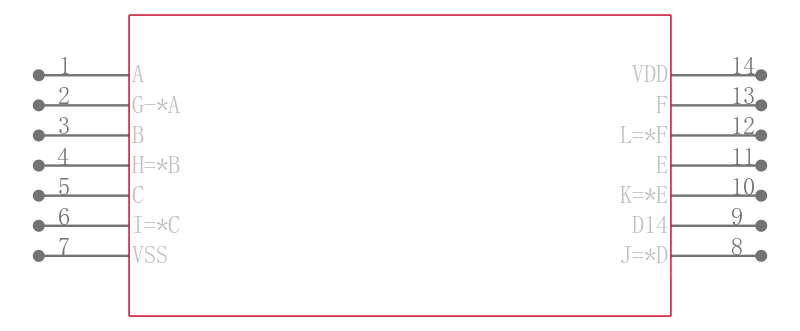

CD4069UBNSRG4

CMOS六反相器 CMOS Hex Inverter

3 Description

The CD4069UB device consist of six CMOS inverter circuits. These devices are intended for all general purpose inverter applications where the medium power TTL-drive and logic-level-conversion capabilities of circuits such as the CD4009 and CD4049 hex inverter and buffers are not required.

Features

• Standardized Symmetrical Output Characteristics

• Medium Speed Operation: –tPHL, tPLH = 30 ns at 10 V Typical

• 100% Tested for Quiescent Current at 20 V

• Maximum Input Current of 1 µA at 18 V Over Full Package-Temperature Range, 100 nA at 18 V and 25°C

• Meets All Requirements of JEDEC Tentative Standard No. 13B, Standard Specifications for Description of B Series CMOS Devices

Applications

• Logic Inversion

• Pulse Shaping

• Oscillators

• High-Input-Impedance Amplifiers
