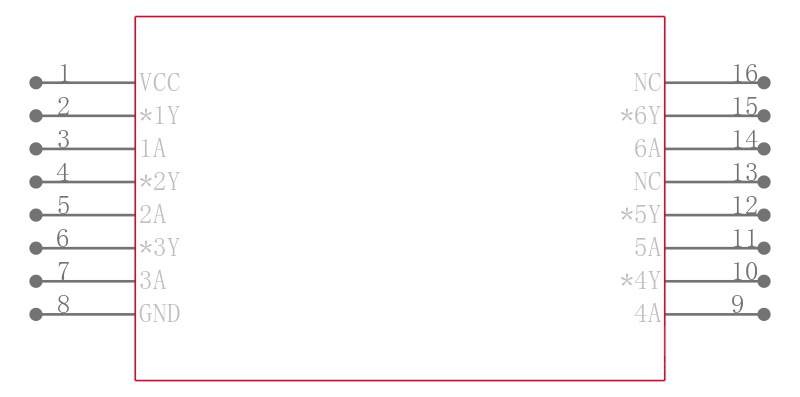

CD74HC4049EE4

高速CMOS逻辑六角缓冲器，反相和非反相 High-Speed CMOS Logic Hex Buffers, Inverting and Non-Inverting

Description

The ’HC4049 and ’HC4050 are fabricated with high-speed silicon gate technology. They have a modified input protection structure that enables these parts to be usedas logic level translators which convert high-level logic to a low level logic while operating off the low-level logic supply. For example, 15-V input pulse levels can be down-converted to 0-V to 5-V logic levels. The modified input protection structure protects the input from negative electrostatic discharge. These parts also can be used as simple buffers or inverters without level translation. The ’HC4049 and ’HC4050 are enhanced versions of equivalent CMOS types

Features

• Typical Propagation Delay: 6ns at VCC = 5V, CL = 15pF, TA = 25oC

• High-to-Low Voltage Level Converter for up to Vl = 16V

• Fanout Over Temperature Range

   - Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL Loads

   - Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL Loads

• Wide Operating Temperature Range . . .–55oC to 125oC

• Balanced Propagation Delay and Transition Times

• Significant Power Reduction Compared to LSTTL Logic ICs

• HC Types

   - 2V to 6V Operation

   - High Noise Immunity: NIL = 30%, NIH = 30%of VCC at VCC = 5V
