CD74HCT08EE4

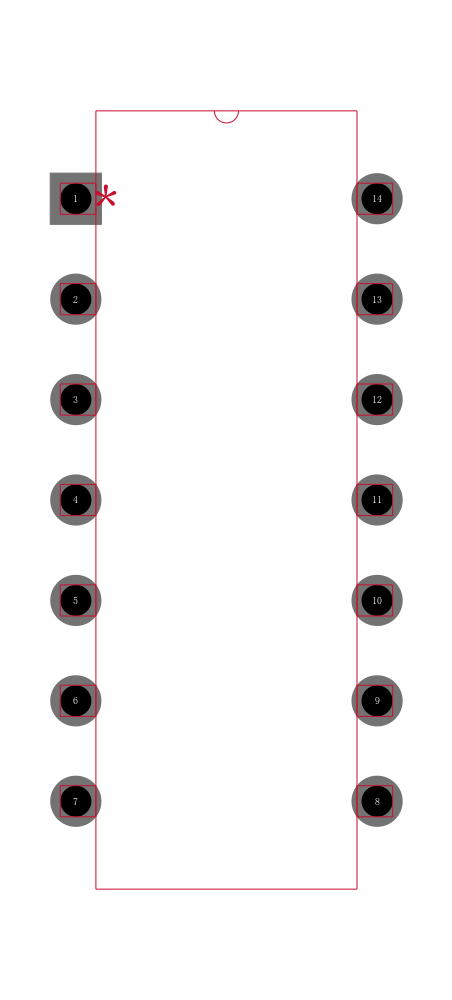

AND Gate 4Element 2IN CMOS 14Pin PDIP Tube

Description

The CD54HC08, CD54HCT08, CD74HC08, and CD74HCT08 logic gates utilize silicon gate CMOS technology to achieve operating speeds similar to LSTTL gates with the low power consumption of standard CMOS integrated circuits. All devices have the ability to drive 10 LSTTL loads. The 74HCT logic family is functionally pin compatible with the standard 74LS logic family.

Features

• Buffered Inputs

• Typical Propagation Delay: 7ns at VCC = 5V, CL = 15pF, TA = 25oC

• Fanout Over Temperature Range

   - Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL Loads

   - Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL Loads

• Wide Operating Temperature Range . . . -55oC to 125oC

• Balanced Propagation Delay and Transition Times

• Significant Power Reduction Compared to LSTTL Logic ICs

• HC Types

   - 2V to 6V Operation

   - High Noise Immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5V

• HCT Types

   - 4.5V to 5.5V Operation

   - Direct LSTTL Input Logic Compatibility, VIL= 0.8V Max, VIH = 2V Min

• CMOS Input Compatibility, Il ≤ 1µA at VOL, VOH
