CR0603-JW-330GLF

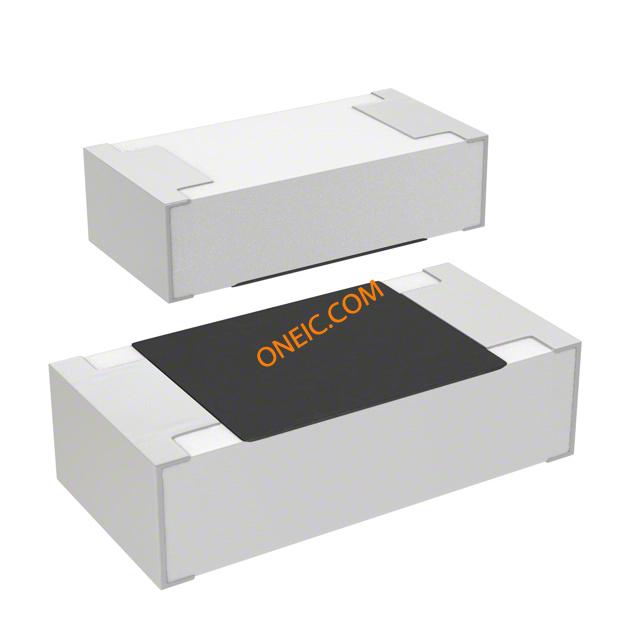

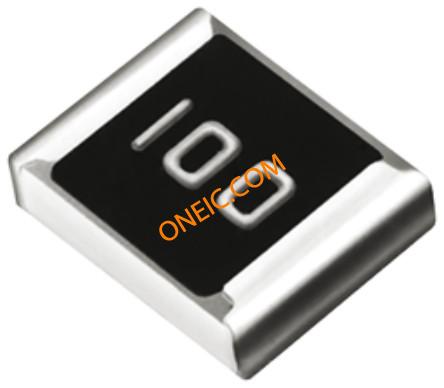

BOURNS  CR0603-JW-330GLF  片式电阻器, 表面贴装, 厚膜, CR系列, 33 ohm, 50 V, 0603 [1608公制], 100 mW, ± 5%

The Bourns CR series are standard thick film chip resistors. These resistors provide flexibility of performance, space saving and low cost. The Resistance range includes E96 and E24 decade values from 1ohm to 10Mohm.

.

0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512 standard case sizes available

.

±1% and ±5% tolerance

.

±100ppm/°C, ±200ppm/°C and ±250ppm/°C TCR values available

.

Power rating selectable for 50mW, 63mW, 0.1W, 0.125W, 0.25W, 0.5W and 1W based on ordering

.

Jumpers are available for all size

.

3 layer termination process with nickel barrier prevents leaching & provides excellent solderability

.

Suitable for all type of soldering processes

.

Tight dimensional tolerances

.

Maximum working voltage depends on case size

.

Operating temperature of -55°C to +125°CCR0201 and -55°C to +155°C ranges available
