CFM12JT150R

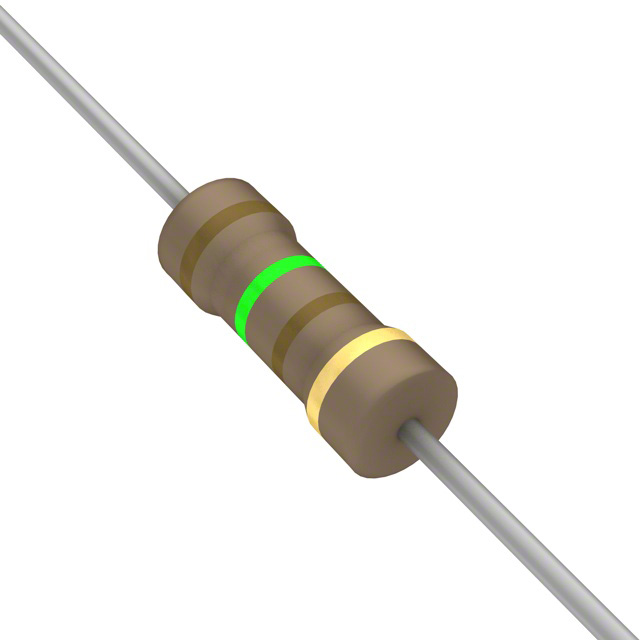

CFM12JT150R图片1
CFM12JT150R图片2
CFM12JT150R概述

150Ω ±5% 0.5W1/2W 0/-400ppm/℃ Φ2.30mm

150 Ohms ±5% 0.5W,1/2W 轴向 通孔器 阻燃涂层,安全 炭膜


得捷:
RES 150 OHM 5% 1/2W AXIAL


艾睿:
If you are designing a basic printed circuit that requires some resistance between components, the CFM12JT150R fixed single through-hole resistor from SEI Stackpole Electronics can offer you a solution. This product has a resistance value of 150 Ohm. This part has a power rating of 0.5 1/2 W. Its temperature coefficient is -400 to 0 ppm/°C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 5%. The CFM12JT150R part has an axial termination style. This product is 6 mm long. This device utilizes carbon film technology.


Chip1Stop:
Res Carbon Film 150 Ohm 5% 0.5W1/2W -400ppm/℃ to 0ppm/℃ Conformal Coated AXL T/R


Verical:
Res Carbon Film 150 Ohm 5% 0.5W1/2W -400ppm/C to 0ppm/C Conformal Coated AXL T/R


CFM12JT150R中文资料参数规格
技术参数

容差 ±5 %

额定功率 0.5 W

产品系列 CFM

电阻 150 Ω

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Through Hole

封装 Axial

外形尺寸

长度 6.5 mm

直径 Φ2.30mm

脚长度 28 mm

封装 Axial

物理参数

工作温度 -55℃ ~ 155℃

温度系数 -400ppm/℃ ~ 0ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

CFM12JT150R引脚图与封装图
CFM12JT150R引脚图
CFM12JT150R封装图

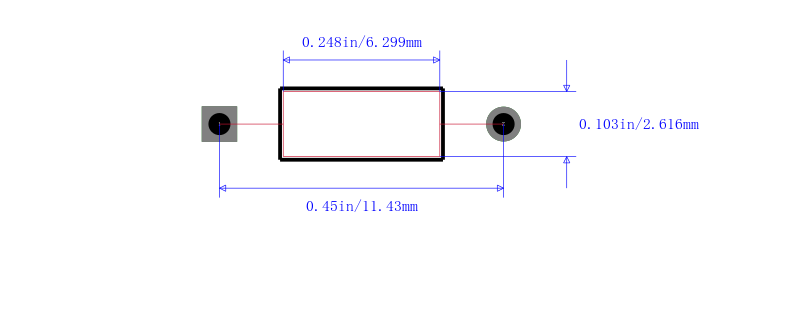

CFM12JT150R封装焊盘图
在线购买CFM12JT150R
型号: CFM12JT150R
制造商: Stackpole Electronics
描述:150Ω ±5% 0.5W1/2W 0/-400ppm/℃ Φ2.30mm
替代型号CFM12JT150R
型号/品牌 代替类型 替代型号对比

CFM12JT150R

Stackpole Electronics

当前型号

当前型号

CF14JT150R

Stackpole Electronics

类似代替

CFM12JT150R和CF14JT150R的区别

ERD-S1TJ151V

松下

类似代替

CFM12JT150R和ERD-S1TJ151V的区别

PCFM12JT150R

Stackpole Electronics

功能相似

CFM12JT150R和PCFM12JT150R的区别
