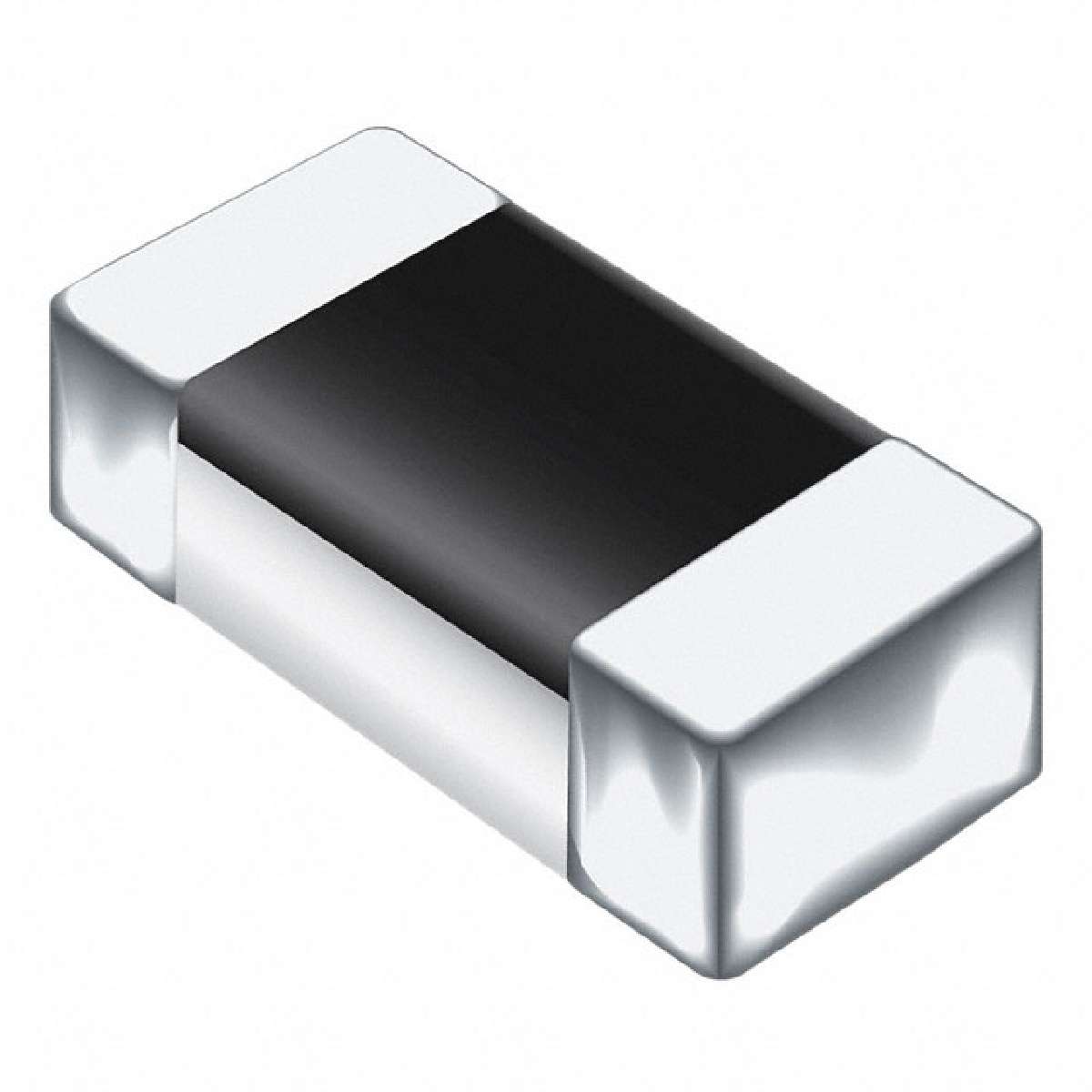

CGA0603MLA-22750E

Var 17VAC 22VDC 30A 41V 0603 SMD Paper T/R

The ChipGuard® MLC Series has been specifically designed to protect sensitive electronic components from electrostatic discharge damage. The MLC family has been designed to protect equipment to IEC61000-4-2, Level 4 ±8 kV Contact/±15 kV Air Discharge ESD specifications targeted for high speed USB 3.0/USB OTG, HDMI 1.4, DVI or IEEE1394 applications.

The ChipGuard® MLC Series has been manufactured to provide low 0.5 pF capacitance and leakage currents less than 50 nA with excellent clamp qualities, making the family almost transparent under normal working conditions.

**Features:**

* RoHS compliant

* ESD protection >25 kV

* Low capacitance <0.5 pF

* Low leakage current <50 nA
