TEXAS INSTRUMENTS CD74HC73M96 触发器, 互补输出, 负沿, D, 13 ns, 23 MHz, SOIC, 14 引脚
Think of Texas Instruments" flip flop device in the event you need to save or retrieve your circuit"s state information quickly. It has a differential output signal. This flip flop has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This inverting/non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V. It has 2 channels per chip.
频率 23 MHz
数字逻辑电平 CMOS
电源电压DC 5.00 V, 6.00 V max
输出接口数 1
输出电流 5.20 A
电路数 2
通道数 2
针脚数 14
时钟频率 60 MHz
位数 2
极性 Non-Inverting, Inverting
输入电容 10 pF
输入数 2
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount

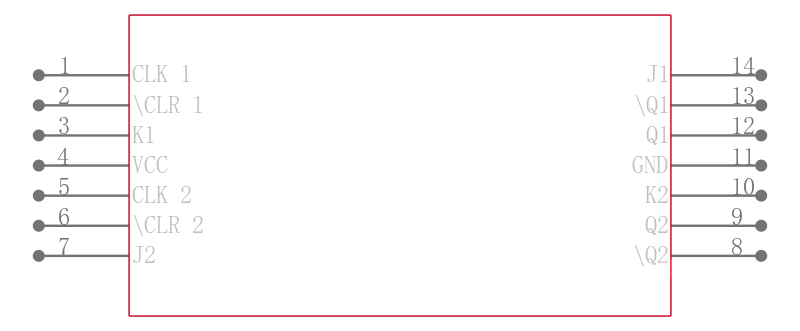

引脚数 14
封装 SOIC-14
长度 8.65 mm
宽度 3.91 mm
高度 1.58 mm
封装 SOIC-14
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CD74HC73M96 TI 德州仪器 | 当前型号 | 当前型号 |
CD74HC73M 德州仪器 | 类似代替 | CD74HC73M96和CD74HC73M的区别 |
CD74HC73MT 德州仪器 | 类似代替 | CD74HC73M96和CD74HC73MT的区别 |
CD74HC73M96G4 德州仪器 | 类似代替 | CD74HC73M96和CD74HC73M96G4的区别 |
