CAT16-22R1F4LF

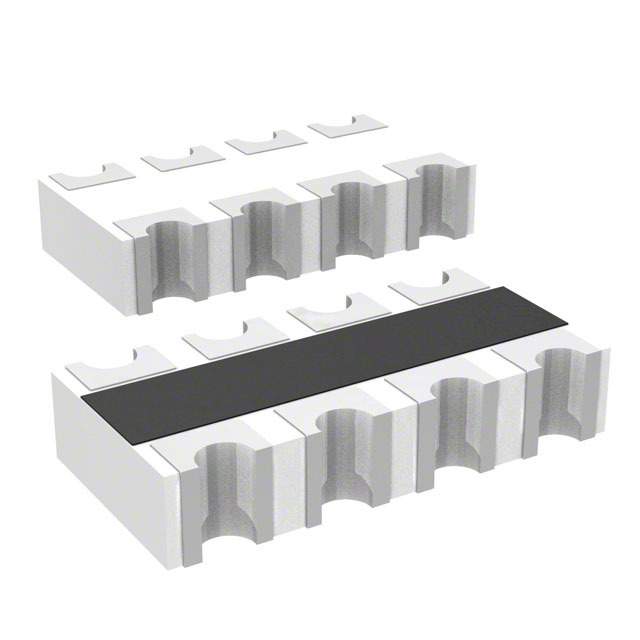

CAT16-22R1F4LF图片1
CAT16-22R1F4LF图片2
CAT16-22R1F4LF图片3
CAT16-22R1F4LF图片4
CAT16-22R1F4LF图片5
CAT16-22R1F4LF图片6
CAT16-22R1F4LF概述

Res Thick Film Array 22.1Ω 1% 0.25W1/4W ±200ppm/℃ ISOL Molded 8Pin 12064 X 0603 Concave SMD T/R

22.1 欧姆 ±1% 62.5mW 每元件功率 隔离 4 器网络,阵列 ±200ppm/°C 1206(3216 公制),凹面,长边端子


得捷:
RES ARRAY 4 RES 22.1 OHM 1206


立创商城:
22.1Ω ±1%


艾睿:
Pack multiple resistors into a single chip with this CAT16-22R1F4LF resistor array from Bourns. Its temperature coefficient is ±200 ppm/°C. This product&s;s 4 resistors have a value of 22.1 Ohm. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. It has 8 terminals. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 3.2 mm long, 0.5 mm tall and 1.6 mm deep. It has a tolerance of 1%. The CAT16-22R1F4LF part has a concave termination style. This part has an operating temperature of -55 to 125 °C. This product&s;s terminal pitch is 0.8 mm. This device utilizes thick film technology.


安富利:
Res Thick Film Array 22.1 Ohm 1% ISOL Molded 8-Pin 1206 Concave SMD Paper T/R


Chip1Stop:
Res Thick Film Array 22.1 Ohm 1% ±200ppm/℃ ISOL Molded 8-Pin 12064 X 0603 Concave SMD T/R


Electro Sonic:
Res Thick Film Array 22.1 Ohm 1% 0.25W1/4W ±200ppm/°C ISOL 8-Pin 12064 X 0603 Concave SMD T/R


CAT16-22R1F4LF中文资料参数规格
技术参数

容差 ±1 %

额定功率 0.25 W

电阻 22.1 Ω

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

引脚数 8

封装公制 3216

封装 1206

外形尺寸

长度 3.2 mm

宽度 1.6 mm

高度 0.5 mm

封装公制 3216

封装 1206

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±200 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买CAT16-22R1F4LF
型号: CAT16-22R1F4LF
制造商: Bourns J.W. Miller 伯恩斯
描述:Res Thick Film Array 22.1Ω 1% 0.25W1/4W ±200ppm/℃ ISOL Molded 8Pin 12064 X 0603 Concave SMD T/R
替代型号CAT16-22R1F4LF
型号/品牌 代替类型 替代型号对比

CAT16-22R1F4LF

Bourns J.W. Miller 伯恩斯

当前型号

当前型号

CAT16-22R1F4

伯恩斯

功能相似

CAT16-22R1F4LF和CAT16-22R1F4的区别
