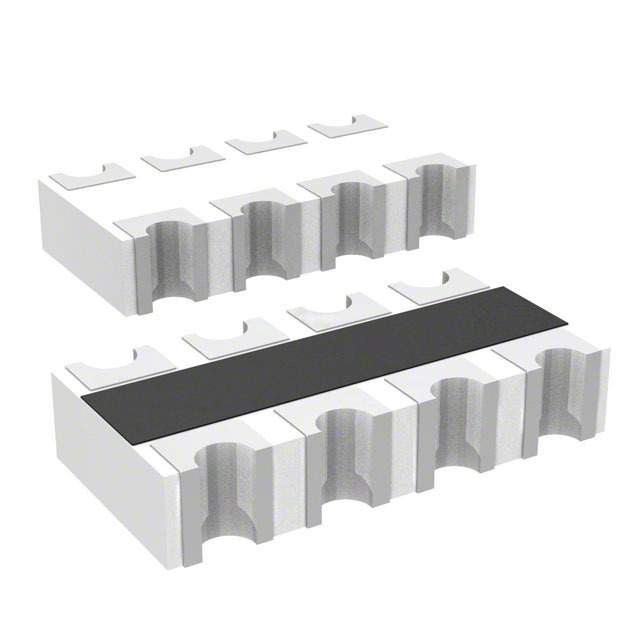

CAT16-56R0F4LF

Res Thick Film Array 56Ω 1% 0.25W1/4W ±200ppm/℃ ISOL Molded 8Pin 12064 X 0603 Concave SMD T/R

56 Ohm ±1% 62.5mW Power Per Element Isolated Resistor Network/Array ±200ppm/°C 1206 3216 Metric, Concave, Long Side Terminals

得捷:
RES ARRAY 4 RES 56 OHM 1206

艾睿:
If you&s;re looking to conserve space in your circuit design, then this CAT16-56R0F4LF resistor array from Bourns will save you valuable space by packing multiple resistors into one IC chip. Its temperature coefficient is ±200 ppm/°C. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. This product&s;s 4 resistors have a value of 56 Ohm. It has 8 terminals. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a tolerance of 1%. The CAT16-56R0F4LF part has a concave termination style. This product is 3.2 mm long, 0.5 mm tall and 1.6 mm deep. This part has an operating temperature of -55 to 125 °C. This product&s;s terminal pitch is 0.8 mm. This device is made with thick film technology.

安富利:
Res Thick Film Array 56 Ohm 1% ISOL Molded 8-Pin 1206 Concave SMD Paper T/R

Chip1Stop:
Res Thick Film Array 56 Ohm 1% ISOL Molded 8-Pin 12064 X 0603 Concave SMD Paper T/R

Electro Sonic:
Res Thick Film Array 56 Ohm 1% 0.25W1/4W ±200ppm/°C ISOL 8-Pin 12064 X 0603 Concave SMD T/R
