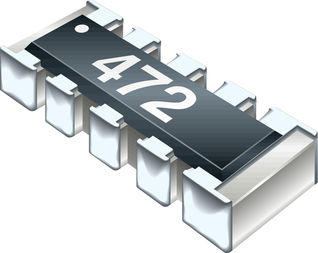

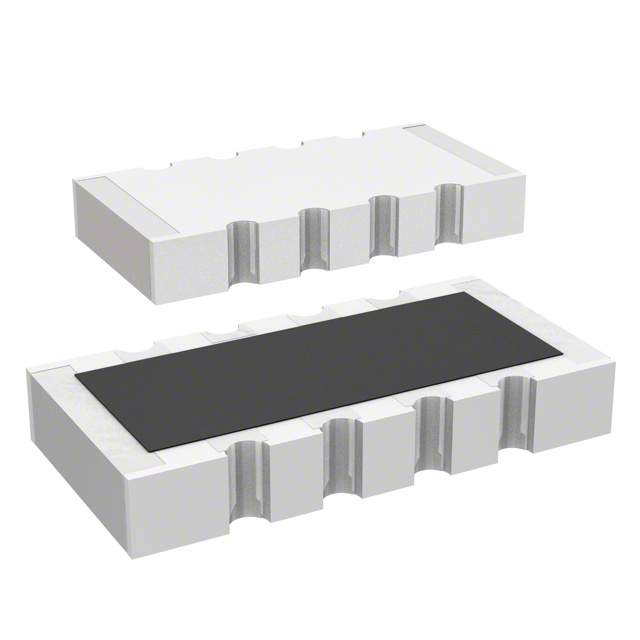

CAY17-202JALF

Res Thick Film Array 2KΩ 5% 0.25W1/4W ±250ppm/℃ BUS Molded 10Pin 12068 X 0603 Convex SMD T/R

2k Ohm ±5% 62.5mW Power Per Element Bussed Resistor Network/Array ±250ppm/°C 1206 3216 Metric, Convex, Long Side Terminals

立创商城:
2kΩ ±5%

得捷:
RES ARRAY 8 RES 2K OHM 1206

艾睿:
Pack multiple resistors into a single chip with this CAY17-202JALF resistor array from Bourns. This product&s;s 8 resistors have a value of 2K Ohm. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. Its temperature coefficient is ±250 ppm/°C. It has 10 terminals. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This part has an operating temperature of -55 to 155 °C. This product&s;s terminal pitch is 0.64 mm. This product is 3.2 mm long, 0.55 mm tall and 1.6 mm deep. The CAY17-202JALF part has a convex termination style. This device is made with thick film technology. It has a tolerance of 5%.

安富利:
Res Thick Film Array 2K Ohm 5% 1/4W ±250ppm/°C BUS Molded 10-Pin 1206 Convex SMD Paper Tape on Plastic Reel

Electro Sonic:
Res Thick Film Array 2K Ohm 5% 0.25W1/4W ±250ppm/°C BUS Molded 10-Pin 12068 X 0603 Convex SMD T/R
