CMOS双J-K· MASTER - SLAVER FLIP - FLOP CMOS DUAL J-K MASTER-SLAVER FLIP-FLOP
2 元件 JK 型 1 位 正边沿 16-TSSOP(0.173",4.40mm 宽)
得捷:
IC FF JK TYPE DUAL 1BIT 16TSSOP
立创商城:
CD4027BPWR
德州仪器TI:
CMOS Dual J-K Master-Slave Flip-Flop
贸泽:
触发器 Dual Master/Slave
艾睿:
If you are looking for a simple device that can store state information, look no further than Texas Instruments&s; CD4027BPWR flip flop device. It has a differential output signal. This flip flop has an operating temperature range of -55 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has 2 channels per chip. This inverting/non-inverting device has a typical operating supply voltage of 3.3|5|9|12|15 V. Its minimum operating supply voltage of 3 V, while its maximum is 18 V.
安富利:
Flip Flop JK-Master-Slave Type Pos-Edge 2-Element 16-Pin TSSOP T/R
Chip1Stop:
Flip Flop JK-Master-Slave Type Pos-Edge 2-Element 16-Pin TSSOP T/R
Verical:
Flip Flop JK-Master-Slave Type Pos-Edge 2-Element 16-Pin TSSOP T/R
频率 24 MHz
数字逻辑电平 CMOS
电源电压DC 15.0 V, 18.0 V max
输出接口数 1
电路数 2
时钟频率 24 MHz
位数 2
极性 Non-Inverting, Inverting
电压波节 5.00 V, 10.0 V, 15.0 V
输入电容 5 pF
输入数 2
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 3V ~ 18V
安装方式 Surface Mount
引脚数 16

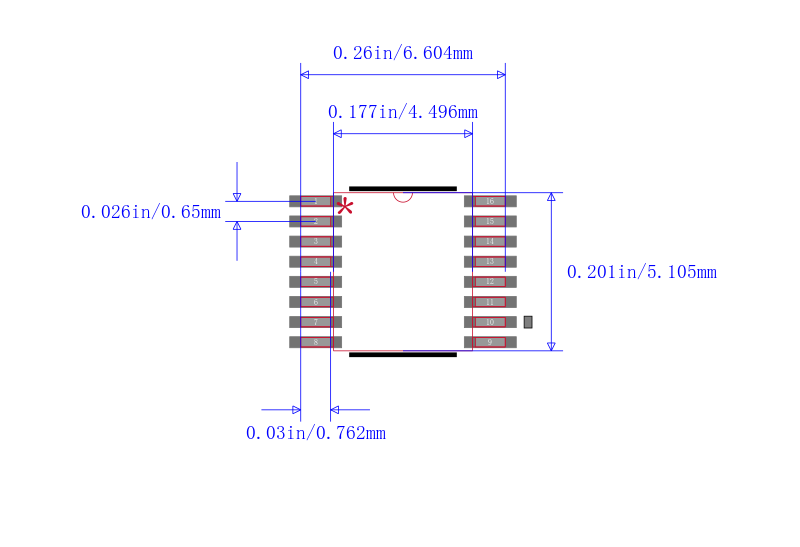

封装 TSSOP-16
长度 5 mm
宽度 4.4 mm
高度 1.15 mm
封装 TSSOP-16
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CD4027BPWR TI 德州仪器 | 当前型号 | 当前型号 |
CD4027BPWRG4 德州仪器 | 完全替代 | CD4027BPWR和CD4027BPWRG4的区别 |
CD4027BPWE4 德州仪器 | 完全替代 | CD4027BPWR和CD4027BPWE4的区别 |
CD4027BPW 德州仪器 | 类似代替 | CD4027BPWR和CD4027BPW的区别 |
