高速CMOS逻辑八路缓冲器/线路驱动器，三态 High-Speed CMOS Logic Octal Buffer/Line Drivers, Three-State
By driving the input to the transmission line this buffer and line driver by Texas Instruments will amplify any signal. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has 8 channels per chip. This inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
电源电压DC 4.50V ~ 5.50V
输出接口数 8
通道数 8
位数 8
传送延迟时间 18.0 ns
电压波节 5.00 V
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount

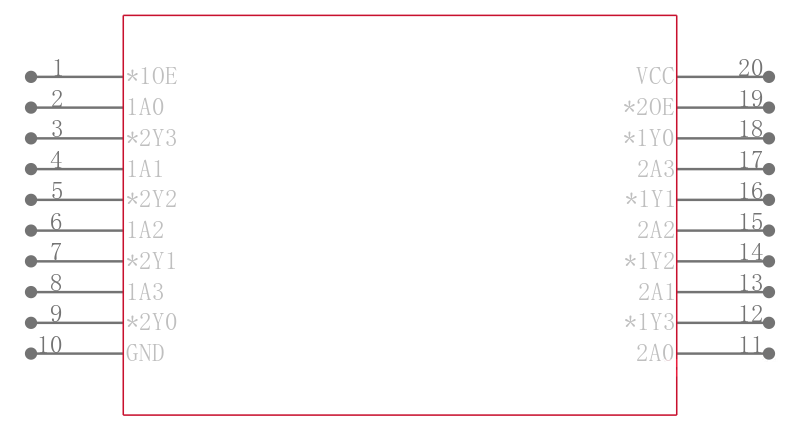

引脚数 20
封装 SOIC-20
长度 12.8 mm
宽度 7.52 mm
高度 2.35 mm
封装 SOIC-20
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CD74HCT240M96 TI 德州仪器 | 当前型号 | 当前型号 |
SN74HCT240DW 德州仪器 | 类似代替 | CD74HCT240M96和SN74HCT240DW的区别 |
CD74HCT240M 德州仪器 | 类似代替 | CD74HCT240M96和CD74HCT240M的区别 |
SN74HCT240DWR 德州仪器 | 类似代替 | CD74HCT240M96和SN74HCT240DWR的区别 |
