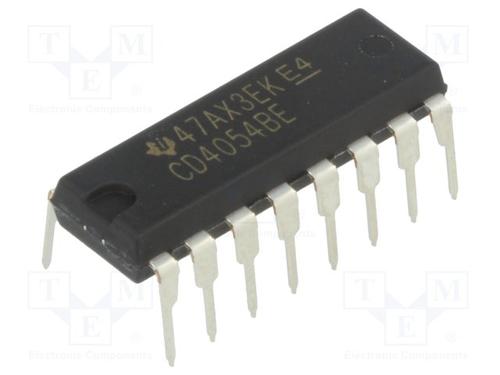

TEXAS INSTRUMENTS CD4054BE 芯片, 缓冲器/驱动器/接收器
Safety is important to allow for products to safely fail, implement this from Texas Instruments to decode multiplexed or non-binary data. This decoder has an operating temperature range of -55 °C to 125 °C. This device comes in tube packaging. This inverting|non-inverting device has a typical operating supply voltage of 3.3|5|9|12|15 V. Its minimum operating supply voltage of 3 V, while its maximum is 18 V.
数字逻辑电平 CMOS
电源电压DC 15.0 V, 18.0 V max
输出接口数 4
供电电流 40 nA
针脚数 16
位数 4
电压波节 5.00 V, 10.0 V, 15.0 V
耗散功率 500 mW
输入电容 5.00 pF
输出电流驱动 -528 µA
输入数 4
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 3V ~ 18V
电源电压Max 18 V
电源电压Min 3 V
安装方式 Through Hole
引脚数 16
封装 DIP-16
宽度 6.35 mm
封装 DIP-16
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CD4054BE TI 德州仪器 | 当前型号 | 当前型号 |
CD4054BF3A 德州仪器 | 完全替代 | CD4054BE和CD4054BF3A的区别 |
CD4054BF 德州仪器 | 功能相似 | CD4054BE和CD4054BF的区别 |
