CAY17-103JALF

BOURNS  CAY17-103JALF  电阻阵列, 8X, 10K, 5%, SMD

CAY17 系列凸面总线器阵列

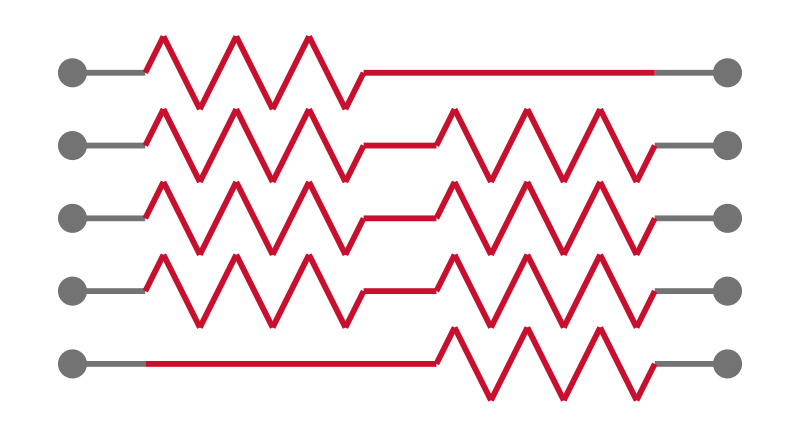

Bourns CAY17 系列片式电阻器阵列的 JA 变体，带 10 个引脚和 8 个电阻器，采用总线格式，用于上拉/下拉电路。

凸面端接

电阻容差 ±5%

电阻范围：4.7kΩ 至 10kΩ

与所有焊接工艺类型兼容

欧时:
Bourns CAY17 系列 10kΩ 8电阻 贴片排阻 CAY17-103JALF, ±5%容差, 总线, 额定0.25W, 1206 3216M 封装

得捷:
RES ARRAY 8 RES 10K OHM 1206

e络盟:
BOURNS  CAY17-103JALF  电阻阵列, 总线式, 8X10KΩ, 5%, 1206, 整卷

艾睿:

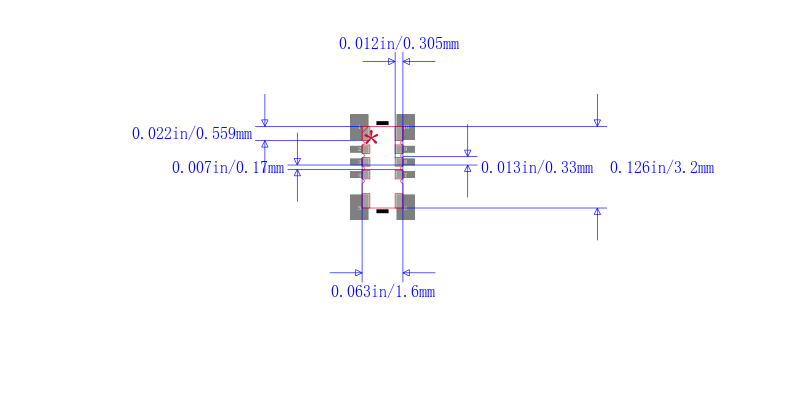

Pack multiple resistors into a single chip with this CAY17-103JALF resistor array from Bourns. This product&s;s 8 resistors have a value of 10K Ohm. Its temperature coefficient is ±250 ppm/°C. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. It has 10 terminals. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product&s;s terminal pitch is 0.64 mm. It has a tolerance of 5%. This product is 3.2 mm long, 0.55 mm tall and 1.6 mm deep. This part has an operating temperature of -55 to 155 °C. This device is made with thick film technology. The CAY17-103JALF part has a convex termination style.

Allied Electronics:
Resistor; Bussed Array; 10 Kilohms; 5%; 250MW; 50V Max

安富利:
Res Thick Film Array 10K Ohm 5% 1/4W ±250ppm/°C BUS Molded 10-Pin 1206 Convex SMD Paper Tape on Plastic Reel

Chip1Stop:
Res Thick Film Array 10K Ohm 5% 0.25W1/4W ﾂｱ250ppm/C BUS Molded 10-Pin 12068 X 0603 Convex SMD T/R

Verical:
Res Thick Film Array 10K Ohm 5% 0.25W1/4W ±250ppm/C BUS Molded 10-Pin 12068 X 0603 Convex SMD T/R

Newark:
# BOURNS  CAY17-103JALF  Fixed Network Resistor, Bussed, 10 kohm, 25 V, 8 Elements, Bussed, 1206 [3216 Metric], 31 mW

MASTER:
Res Thick Film Array 10K Ohm 5% 0.25W1/4W ±250ppm/°C BUS 10-Pin 12068 X 0603 Convex SMD T/R

Electro Sonic:
Res Thick Film Array 10K Ohm 5% 0.25W1/4W ±250ppm/°C BUS 10-Pin 12068 X 0603 Convex SMD T/R
