8位缓冲器/线路驱动器 8-Bit Buffer/Line Driver
Amplify analog and digital signals by driving the input to the transmission line with this buffer and line driver from Texas Instruments. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of -40 °C to 85 °C. This device comes in tube packaging. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V. It has 8 channels per chip.
电源电压DC 5.25V max
输出接口数 8
通道数 8
位数 8
电压波节 5.00 V
输入数 8
工作温度Max 85 ℃
工作温度Min 40 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 20

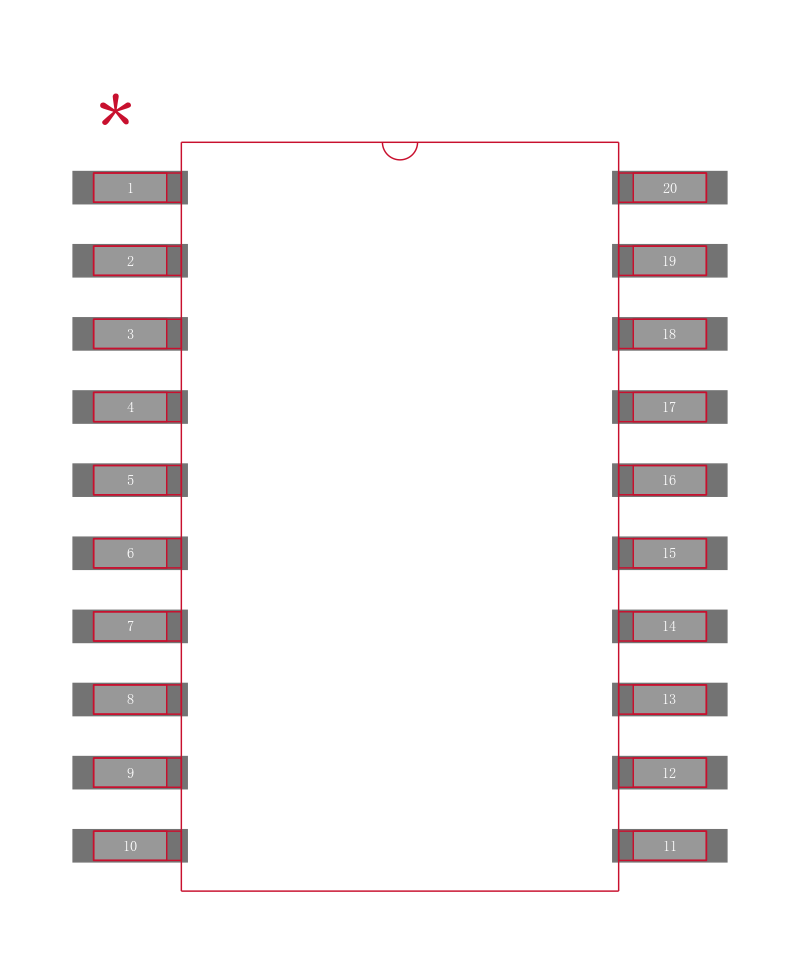

封装 SOIC-20
长度 12.8 mm
宽度 7.52 mm
高度 2.35 mm
封装 SOIC-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CY74FCT2541ATSOC TI 德州仪器 | 当前型号 | 当前型号 |
CY74FCT2541TQCT 德州仪器 | 完全替代 | CY74FCT2541ATSOC和CY74FCT2541TQCT的区别 |
CY74FCT2541TSOC 德州仪器 | 完全替代 | CY74FCT2541ATSOC和CY74FCT2541TSOC的区别 |
74FCT2541ATSOCTE4 德州仪器 | 完全替代 | CY74FCT2541ATSOC和74FCT2541ATSOCTE4的区别 |
