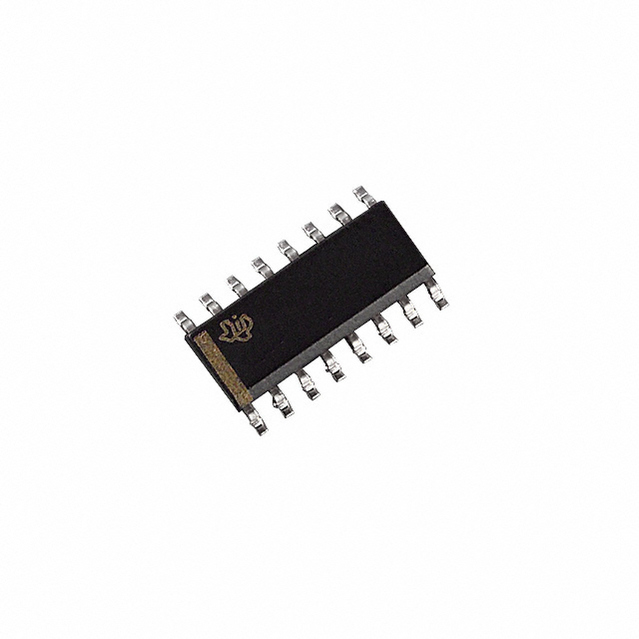

CMOS四路D型触发器 CMOS QUAD D-TYPE FLIP-FLOP
1 元件 D 型 4 位 正边沿 16-SOIC(0.154",3.90mm 宽)
得捷:
IC FF D-TYPE SNGL 4BIT 16SOIC
立创商城:
CD40175BM96
德州仪器TI:
CMOS Quad D-Type Flip-Flop
艾睿:
If you are looking for a simple device that can store state information, look no further than Texas Instruments&s; CD40175BM96 flip flop device. It has a differential output signal. This flip flop has a minimum operating temperature of -55 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This inverting/non-inverting device has a typical operating supply voltage of 3.3|5|9|12|15 V. Its minimum operating supply voltage of 3 V, while its maximum is 18 V. It has 4 channels per chip.
安富利:
Flip Flop D-Type Bus Interface Pos-Edge 1-Element 16-Pin SOIC T/R
Chip1Stop:
Flip Flop D-Type Bus Interface Pos-Edge 1-Element 16-Pin SOIC T/R
Verical:
Flip Flop D-Type Bus Interface Pos-Edge 1-Element 16-Pin SOIC T/R
Win Source:
IC FF D-TYPE SNGL 4BIT 16SOIC / Flip Flop 1 Element D-Type 4 Bit Positive Edge 16-SOIC 0.154", 3.90mm Width
输出接口数 4
电路数 1
通道数 4
时钟频率 14 MHz
位数 4
电压波节 5.00 V, 10.0 V, 15.0 V
输入电容 5 pF
输入数 4
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 3V ~ 18V
电源电压Max 18 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
宽度 3.91 mm
封装 SOIC-16
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CD40175BM96 TI 德州仪器 | 当前型号 | 当前型号 |
CD40175BM 德州仪器 | 完全替代 | CD40175BM96和CD40175BM的区别 |
CD40175BMT 德州仪器 | 完全替代 | CD40175BM96和CD40175BMT的区别 |
CD40175BEE4 德州仪器 | 完全替代 | CD40175BM96和CD40175BEE4的区别 |
