16位缓冲器/线路驱动器 16-Bit Buffers/Line Drivers
Buffer, Non-Inverting 4 Element 4 Bit per Element 3-State Output 48-SSOP
得捷:
IC BUF NON-INVERT 5.5V 48SSOP
立创商城:
CY74FCT16244TPVCT
德州仪器TI:
16-ch, 4.5-V to 5.5-V buffers with TTL-compatible CMOS inputs and 3-state outputs
艾睿:
Amplify analog and digital signals by driving the input to the transmission line with this CY74FCT16244TPVCT buffer and line driver from Texas Instruments. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device comes in tube packaging. It has 16 channels per chip. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
安富利:
Buffer/Line Driver 16-CH Non-Inverting 3-ST CMOS 48-Pin SSOP T/R
Chip1Stop:
Buffer/Line Driver 16-CH Non-Inverting 3-ST CMOS 48-Pin SSOP Tube
Verical:
Buffer/Line Driver 16-CH Non-Inverting 3-ST CMOS 48-Pin SSOP T/R
电源电压DC 5.50V max
输出接口数 16
通道数 16
位数 16
电压波节 5.00 V
输出电流驱动 -500 µA
输入数 16
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1000 mW
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount

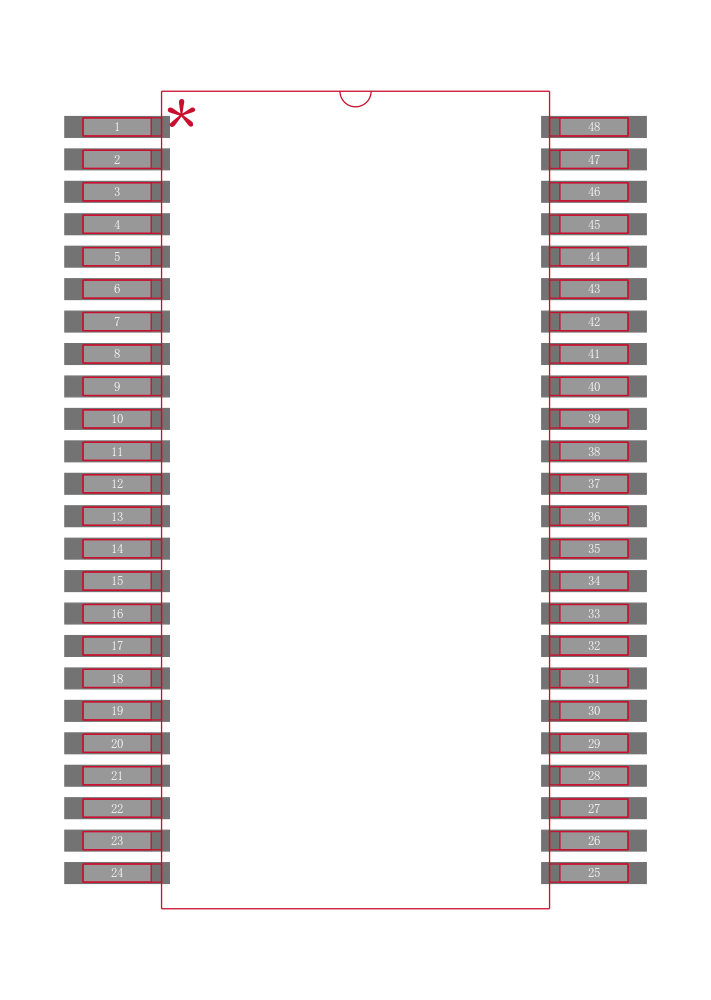

引脚数 48

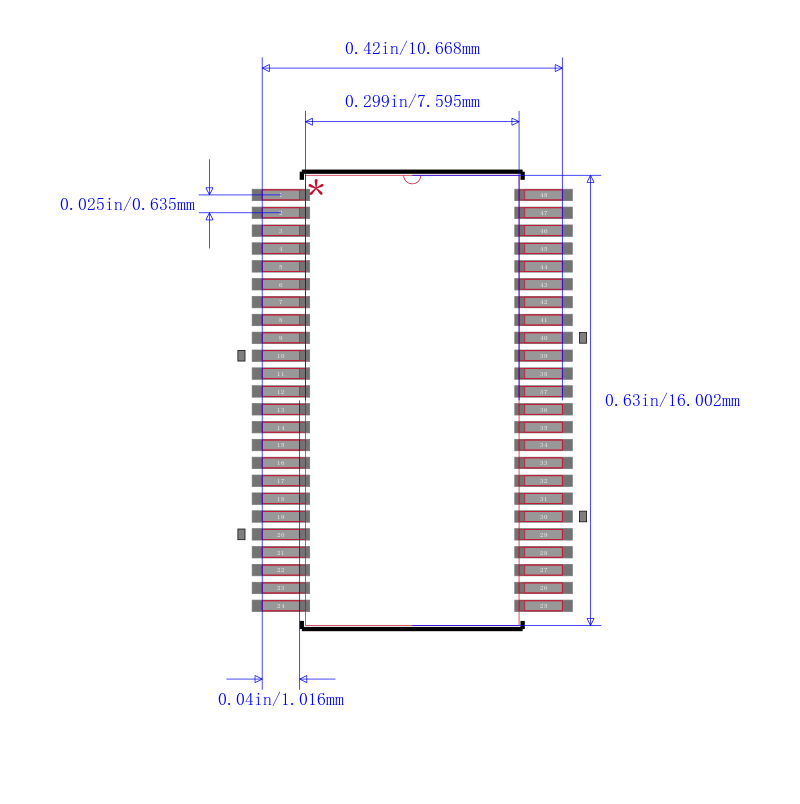

封装 SSOP-48
封装 SSOP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CY74FCT16244TPVCT TI 德州仪器 | 当前型号 | 当前型号 |
SN74AHCT16245DL 德州仪器 | 类似代替 | CY74FCT16244TPVCT和SN74AHCT16245DL的区别 |
CY74FCT16244TPVC 德州仪器 | 类似代替 | CY74FCT16244TPVCT和CY74FCT16244TPVC的区别 |
CY74FCT16245ATPVC 德州仪器 | 类似代替 | CY74FCT16244TPVCT和CY74FCT16245ATPVC的区别 |
