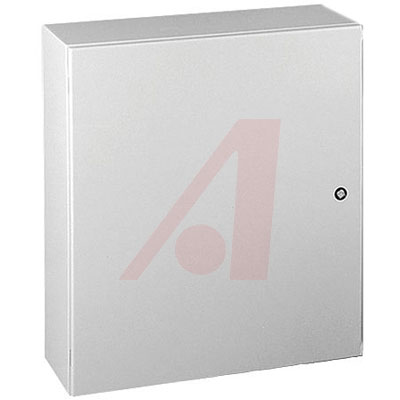

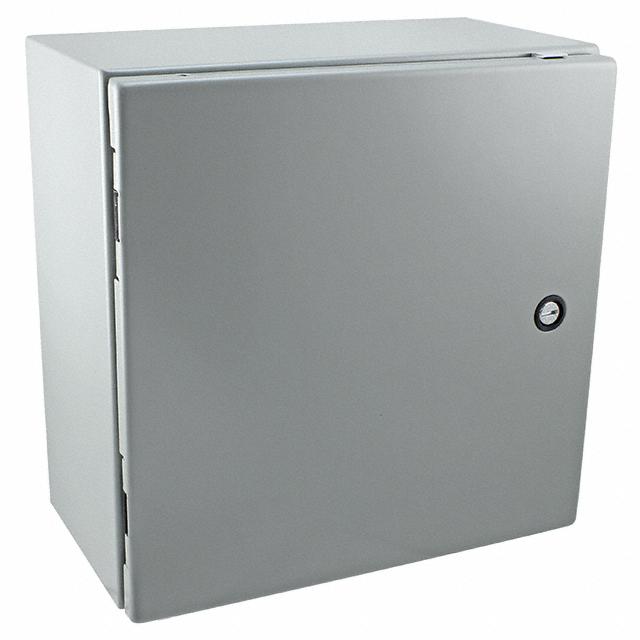

HOFFMAN ENCLOSURES CSD242010 单门机箱, 墙壁安装
**APPLICATION**

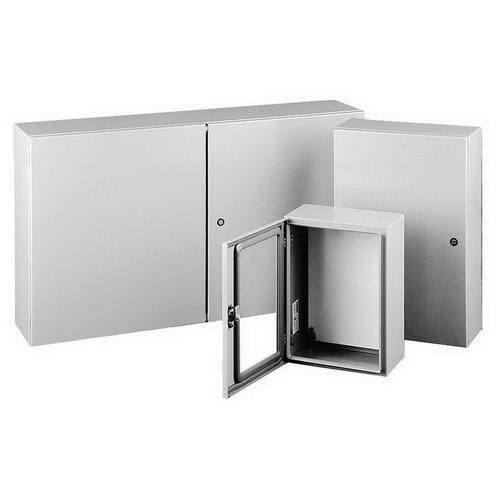

CONCEPT™ Enclosures are ideal for machine control applications. With streamlined styling, flush quarter-turn Latch and an attractive, durable finish. Available in solid or window single-door and two-door landscape, flush-mount and sloped-top versions for application and mounting flexibility. Two-door landscape models provide full-width access and easy panel installation.
**SPECIFICATIONS**
* 14, 16 or 18 gauge steel see table
* Seams continuously welded and ground smooth
* Corner-formed doors
* Simple easy-to-remove and install hinge pins with built-in captivation clip
* High-torque threadless studs and fasteners on door
* Minimum-width body flange provides maximum door opening 210 degrees
* External formed body flange
* Panel mounting studs fit optional CONCEPT panels and other accessories
* Mounting holes in back of body for optional external wall-mount brackets
* Hidden hinges
* Doors are interchangeable and easily removed by pulling clipstyle hinge pins
* Seamless foam-in-place gasket
* Quarter-turn slotted latches
* Door alignment device on doors wider than 30 in.
* Four hinges on 60-in.-high enclosures
* Grounding stud on body; bonding provision on door except window-door models
* Provisions for thermoplastic data pocket right-hand hinged door on two-door models
* Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
* Single-door enclosures have a three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch
* Window-door enclosures have a clear polycarbonate window flush with door surface
* Mounting frame on flush-mount enclosures extends completely around enclosure
* Two-door enclosures have a overlapping door design which provides full-width access
* Two door enclosures have a three-point latch system on righthand hinged door furnished with flush slotted insert
* Illustrated instruction sheet
**FINISH**
Two standard finishes are available: ANSI 61 gray or RAL 7035 textured light-gray polyester powder paint inside and out.
