C02250618

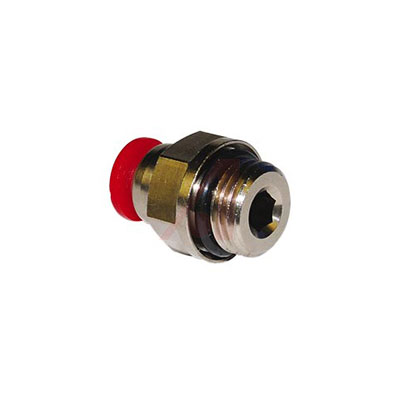

NORGREN  C02250618  气动接头, 杆式, 直线适配器, 6 mm, 14 mm, G1/8

The is a push-in parallel thread straight Male Adaptor made of brass with nickel plated finish. It has release buttons, stainless steel grab ring with special design to retain softer tube and provide easy reliability. The silicone-free U-packing provides leak tight tube seal under side loading. The stem seal provides leak tight 360° swivel connection. The nickel-plated brass threads and notches on hex to signify NPT.

.

Offers fast assembly with no need for tools and providing optimum flow

.

Nickel-plated brass components provide corrosion and contamination resistance and an extended life

.

Innovative through design and technology

.

Superior levels of performance

.

Compact and lightweight

.

Corrosion-resistant

.

10bar Maximum operating pressure

.

750mm of Hg Vacuum

The Pneufit® C range must not be used in vehicle air braking or ancillary systems. For push-in fittings suitable for these applications, please refer to the Fleetfit range.
