C112 10A035 050 10

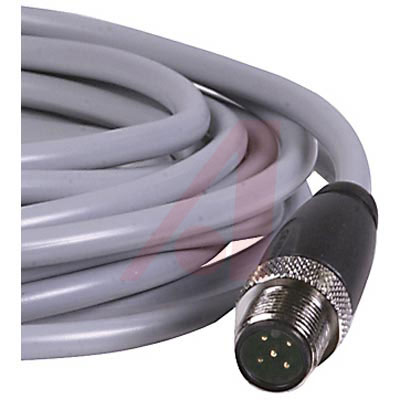

CABLE ASSEMBLY, MALE STRAIGHT M-12 CONNECTOR, 5Contact, 5 METER SENSOR CABLE

22 AWG, PVC Jacket, Cable Connectors

Use with 12 mm tubular proximity sensors, photo electric and modular controls. Mechanically keyed mating parts with anti-vibration coupling nuts. Connectors have a threaded diameter of 12 mm.

.

* Material:** ** Dielectric:** Thermal plastic; ** Body-**** Thermoplastics Poles** : 3- and 4-poles — 22 AWG, 5-poles — 24 AWG. ** Ratings:** Standard 3- and 4-poles — 250 VAC/VDC; 5-poles — 60 VAC/VDC; 4 A Shielded 3-, 4- and 5-poles — 30 VAC/VDC, 4 A. ** Contract Plating: ** Gold.

Voltage rating is 30 VAC/VDC. 3 to 5 number of positions. -25 °C to +85 °C operating temperature. ≤== 10 Milliohms resistance contact.
