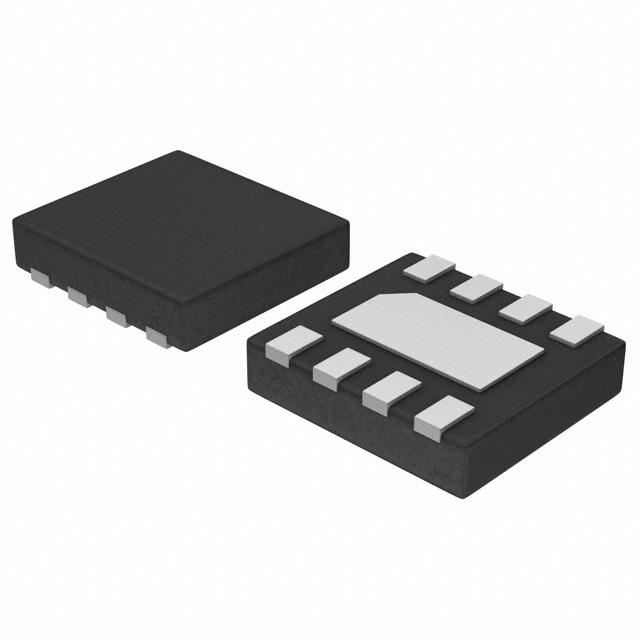

CAT4004BHU2-GT3图片1
CAT4004BHU2-GT3图片2
CAT4004BHU2-GT3图片3
CAT4004BHU2-GT3概述

恒流可编程LED驱动器, 32调光等级 Constant Current Programmable LED Driver with 32 Dimming Levels

The CAT4003B and CAT4004B provide respectively three and four matched low dropout current sources to drive LEDs. The CAT400XB requires no external RSET resistor. The LED current is internally set to 25 mA when the device is first enabled. Each LED channel includes an individual control loop allowing the device to handle a wide range of LED forward voltages while still maintaining tight current matching. The EN/DIM logic input supports the device enable and a digital dimming interface for setting the LED channel current with 32 linear dimming levels. LEDs can be powered directly from a Lithium-ion battery due to the low dropout 75 mV at 20 mA current sinks. Package options are available in the 4-channel tiny 8-pad UDFN 2 mm x 2 mm with a max height of 0.55 mm, and 3- channel in the 6-lead TSOT-23, TSOP and SC-70.

Features |   | Benefits

---|---|---

 | |  | |  |

.
Low Dropout Driver 75 mV at 20 mA

|   |

.
Can drive LEDs at lower VIN
.
Dimming via 1-wire EZDimTM Interface

|   |

.
higher resolution dimming
.
3, 4 LED Current Sinks with Tight Matching

|   |

.
32 Dimming Levels

|   |

.
No Switching Noise

|   |

.
Shutdown Current less than 1 µA

|   |

.
25 mA Max LED Current per Channel

|   |

.
Thermal Shutdown Protection

|   |

CAT4004BHU2-GT3中文资料参数规格
技术参数

无卤素状态 Halogen Free

输出接口数 4

拓扑结构 Linear

工作温度Max 85 ℃

工作温度Min -40 ℃

封装参数

安装方式 Surface Mount

引脚数 8

封装 UDFN-8

外形尺寸

封装 UDFN-8

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 LCD Display Backlight, 背光

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买CAT4004BHU2-GT3
型号: CAT4004BHU2-GT3
描述:恒流可编程LED驱动器, 32调光等级 Constant Current Programmable LED Driver with 32 Dimming Levels
