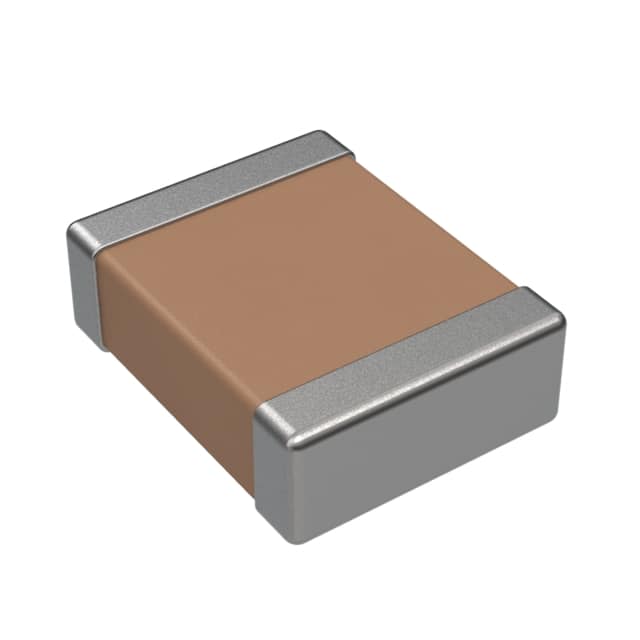

Cap Ceramic 0.0082uF 50V C0G 5% SMD 1210 125℃ Plastic T/R
±5% 50V 陶瓷器 C0G,NP0 1210(3225 公制)
得捷:
CAP CER 8200PF 50V C0G/NP0 1210
艾睿:
Due to the use of different ceramic dielectric materials used in this C1210X822J5GACTU multilayer ceramic capacitor from Kemet, you can choose the right capacitor based on capacitance values, voltage ratings, package sizes, and other parameters. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its capacitance value is 0.0082uF. This product is 3.3 mm long, 0.9 mm tall and 2.5 mm deep. This device is made with flexiterm technology. It has a tolerance of 5%.
安富利:
Cap Ceramic 0.0082uF 50V C0G 5% SMD 1210 125°C Plastic T/R
额定电压DC 50.0 V
绝缘电阻 100 GΩ
电容 0.0082 µF
等效串联电阻ESR 6.5 Ω
容差 ±5 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 3225
封装 1210
长度 3.2 mm
宽度 2.5 mm
高度 0.9 mm
封装公制 3225
封装 1210
介质材料 Ceramic
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 -, Boardflex 敏感
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C1210X822J5GACTU KEMET Corporation 基美 | 当前型号 | 当前型号 |
C1210C822J5GAC7800 基美 | 完全替代 | C1210X822J5GACTU和C1210C822J5GAC7800的区别 |
C1210C822J5GACTU 基美 | 功能相似 | C1210X822J5GACTU和C1210C822J5GACTU的区别 |
C1210X822J5GAC 基美 | 功能相似 | C1210X822J5GACTU和C1210X822J5GAC的区别 |
