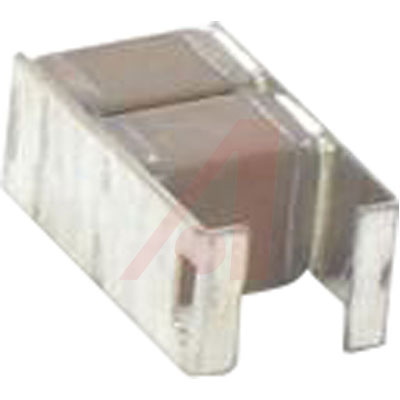

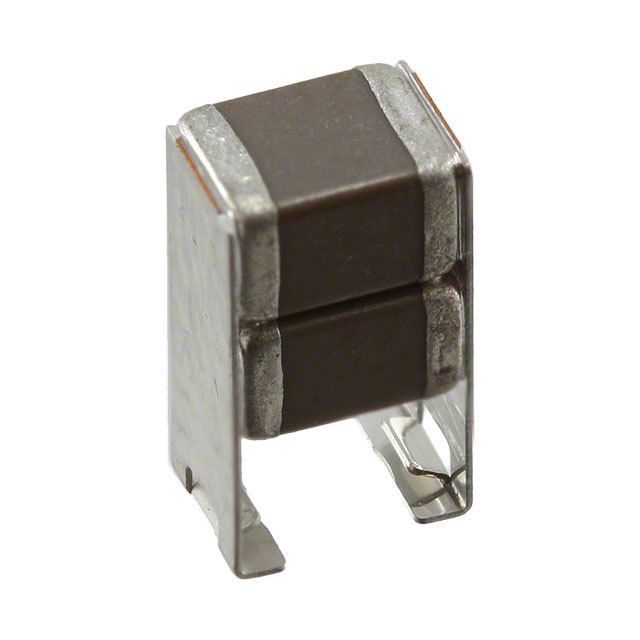

C1210C476M8R2CTU

Capacitor; Ceramic; Cap 47uF; Tol 20%; Vol-Rtg 10VDC; SMT; 1210; X7R; Double Stack

KPS Series — Commercial Grade X7R Dielectric KEMET"s KPS series KEMET Power Solutions utilizes proprietary lead-frame technology to vertically stack and place one or two multilayer ceramic chip capacitors MLCCs into a parallel circuit and single compact surface mount package. Stacking allows for up to double the capacitance in the same or smaller design footprint when compared to traditional surface mount MLCC devices. The attached lead-frame mechanically isolates the capacitor/s from the printed circuit board, therefore offering advanced mechanical and thermal stress performance.

**Benefits**

* Higher Capacitance in the Same Footprint, Greatly Reducing Board Space

* Provides Advanced Protection Against Thermal and Mechanical Stress

* Provides Up to 10 mm of Board Flex Capability

* Reduces Audible, Microphonic Noise

* Provides Extremely Low ESR and ESL

* Tantalum and Electrolytic Alternative

**Applications**

* Industrial, Automotive, Military, Telecom

* Smoothing Circuits

* DC-to-DC Convertors

* Power supplies Input/Output Filters

* Noise Reduction Piezoelectric/Mechanical

* To Increase Flex Resistance in Board Flex Applications
