MLCC-多层陶瓷电容器
MLCC-多层陶瓷器
得捷:
CAP CER 560PF 16V X7R 0201
立创商城:
560pF ±10% 16V
艾睿:

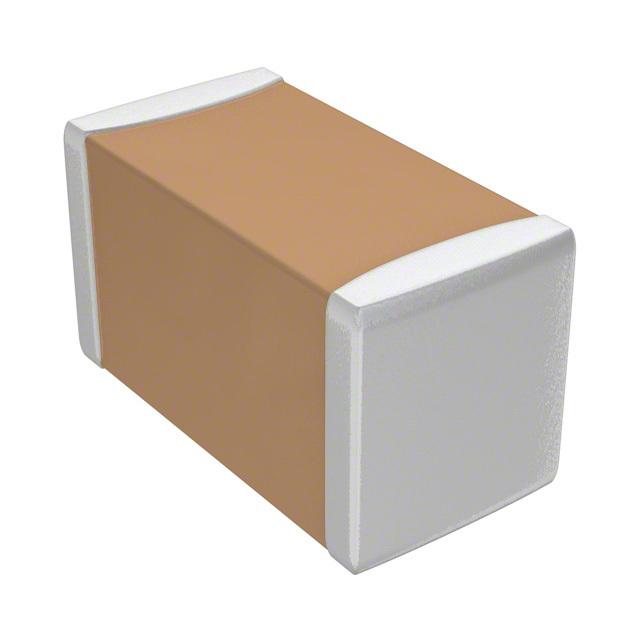

This CL03B561KO3NNNC multilayer ceramic capacitor from Samsung Electro-Mechanics has so many uses that it even has a standard classification system for all its uses! It can withstand a voltage of 16 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has a tolerance of 10%. Its capacitance value is 560pF. This product is 0.6 mm long, 0.3 mm tall and 0.3 mm deep.
额定电压DC 16.0 V
电容 560 pF
容差 ±10 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 16 V
安装方式 Surface Mount
封装公制 0603
封装 0201
长度 0.6 mm
宽度 0.3 mm
高度 0.3 mm
封装公制 0603
封装 0201
厚度 0.3 mm
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CL03B561KO3NNNC Samsung 三星 | 当前型号 | 当前型号 |
CL03B561KO3NNND 三星 | 完全替代 | CL03B561KO3NNNC和CL03B561KO3NNND的区别 |
GRM033R71C561KA01D 村田 | 类似代替 | CL03B561KO3NNNC和GRM033R71C561KA01D的区别 |
NMC0201X7R561K16TRPF NIC | 类似代替 | CL03B561KO3NNNC和NMC0201X7R561K16TRPF的区别 |
