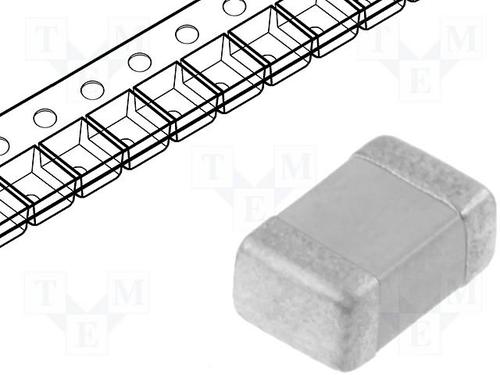

CL21系列 0805 0.22 uF 16 V 10 % X7R SMD 多层陶瓷电容
MLCC-多层陶瓷器
立创商城:
220nF ±10% 16V
欧时:
Samsung Electro-Mechanics CL 系列 220nF 16V dc X7R电介质 表面安装器件 多层陶瓷电容器 MLCC
得捷:
CAP CER 0.22UF 16V X7R 0805
艾睿:
Use its standard classification system to find out what this CL21B224KOCNNNC multilayer ceramic capacitor from Samsung Electro-Mechanics can do for you! It can withstand a voltage of 16 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 2 mm long, 0.85 mm tall and 1.25 mm deep. It has a tolerance of 10%. Its capacitance value is 0.22uF.
Chip1Stop:
Cap Ceramic 0.22uF 16VDC X7R 10% SMD 0805 Paper T/R
TME:
Capacitor: ceramic; MLCC; 220nF; 16V; X7R; ±10%; SMD; 0805
Verical:
Cap Ceramic 0.22uF 16V X7R 10% Pad SMD 0805 125C T/R
儒卓力:
**KC 220nF 0805 10% 16V X7R **
额定电压DC 16.0 V
工作电压 16 V
绝缘电阻 10 GΩ
电容 220 nF
容差 ±10 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±10 %
额定电压 16 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.85 mm
封装公制 2012
封装 0805
厚度 0.85 mm
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
温度系数 ±15 %
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CL21B224KOCNNNC Samsung 三星 | 当前型号 | 当前型号 |
CL21B224KOCNNND 三星 | 完全替代 | CL21B224KOCNNNC和CL21B224KOCNNND的区别 |
0805YC224KAT4A 艾维克斯 | 类似代替 | CL21B224KOCNNNC和0805YC224KAT4A的区别 |
CC0805KPX7R7BB224 国巨 | 类似代替 | CL21B224KOCNNNC和CC0805KPX7R7BB224的区别 |
