MLCC-多层陶瓷电容器
MLCC-多层陶瓷器
得捷:
CAP CER 150PF 500V C0G/NP0 1206
艾睿:

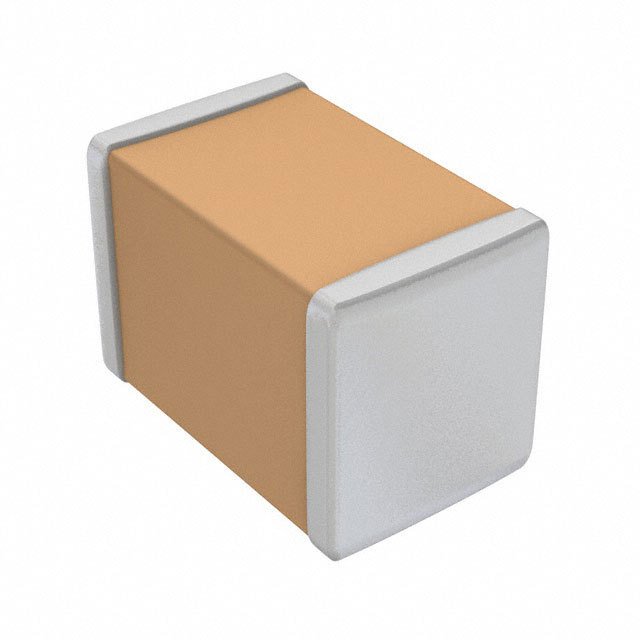

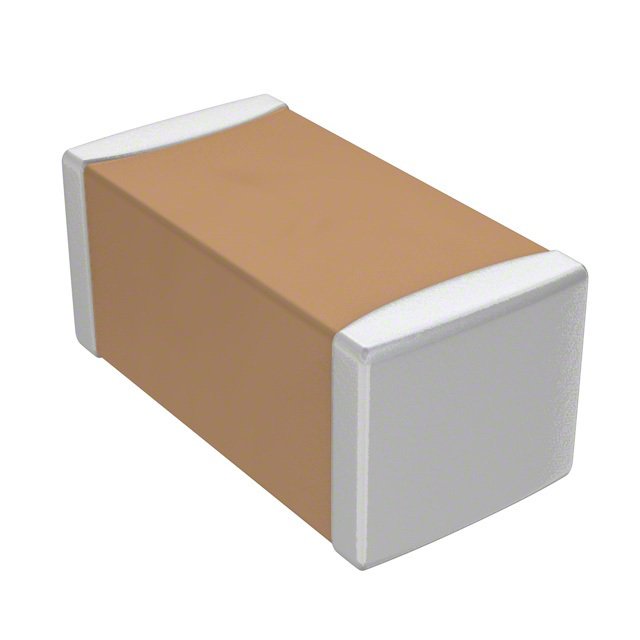

Since this CL31C151JGFNNNE multilayer ceramic capacitor from Samsung Electro-Mechanics has multiple layers of dielectric and electrodes, you&s;ll be getting high stability and low losses for resonant circuit applications. It can withstand a voltage of 500 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 3.2 mm long, 1.25 mm tall and 1.6 mm deep. Its capacitance value is 150pF. It has a tolerance of 5%.
安富利:
Cap Ceramic 150pF 500V C0G 5% SMD 1206 125°C Embossed T/R
Verical:
Cap Ceramic 150pF 500V C0G 5% Pad SMD 1206 125C T/R
额定电压DC 500 V
电容 150 pF
容差 ±5 %
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 500 V
安装方式 Surface Mount

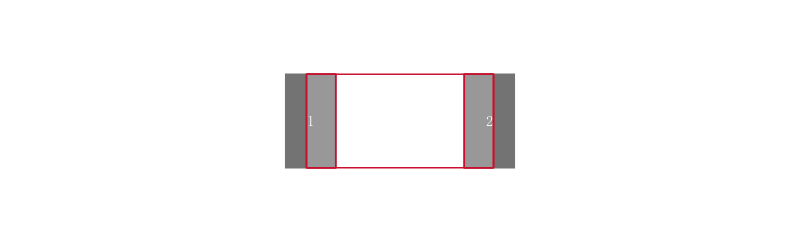

封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.25 mm
封装公制 3216
封装 1206
厚度 1.25 mm
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CL31C151JGFNNNE Samsung 三星 | 当前型号 | 当前型号 |
GRM31A5C2H151JW01D 村田 | 类似代替 | CL31C151JGFNNNE和GRM31A5C2H151JW01D的区别 |
NMC-H1206NPO151J500TRPF NIC | 类似代替 | CL31C151JGFNNNE和NMC-H1206NPO151J500TRPF的区别 |
VJ1206Y151JXEAT5Z Vishay Vitramon | 功能相似 | CL31C151JGFNNNE和VJ1206Y151JXEAT5Z的区别 |
