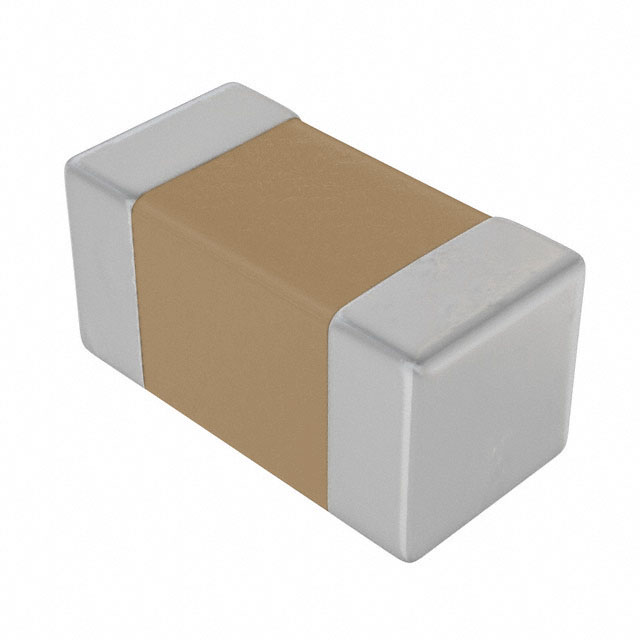

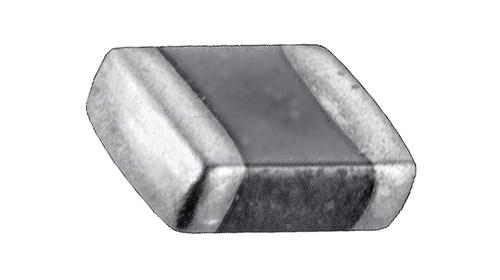

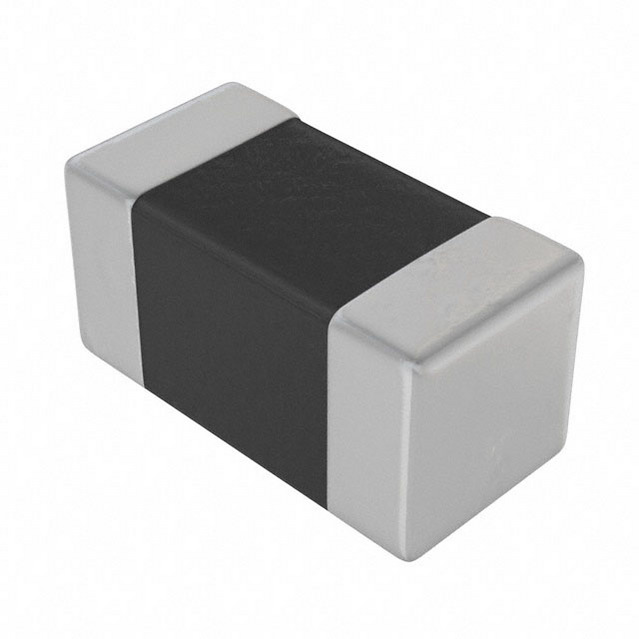

Cap Ceramic 2.7pF 50V C0G 0.5pF SMD 0603 125℃ Paper T/R
SMD Comm C0G, Ceramic, Commercial Grade, 2.7 pF, +/-0.5 pF, 50 VDC, C0G, SMD, MLCC, Ultra-Stable, Low Loss, Class I, 0603
立创商城:
±0.5pF 50V
得捷:
CAP CER 2.7PF 50V C0G/NP0 0603
艾睿:
You can use multiple capacitors of different parameters choosing this C0603C279D5GACTU multilayer ceramic capacitor from Kemet! It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its capacitance value is 2.7pF. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep.
安富利:
Cap Ceramic 2.7pF 50V C0G 0.5pF SMD 0603 125°C Paper T/R
Chip1Stop:
Cap Ceramic 2.7pF 50V C0G 0.5pF SMD 0603 125C Paper T/R
Verical:
Cap Ceramic 2.7pF 50V C0G 0.5pF Pad SMD 0603 125C Extreme Low ESR T/R
额定电压DC 50.0 V
绝缘电阻 100 GΩ
电容 2.7 pF
容差 ±0.5 pF
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 1608

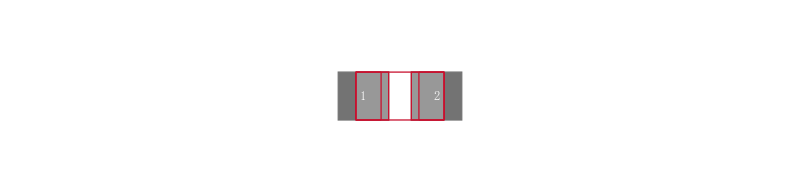

封装 0603
引脚间距 0.7 mm
长度 1.6 mm
宽度 1.6 mm
高度 0.8 mm
封装公制 1608
封装 0603
引脚间距 0.7 mm
介质材料 Ceramic
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C0603C279D5GACTU KEMET Corporation 基美 | 当前型号 | 当前型号 |
C0603C279D1GACTU 基美 | 功能相似 | C0603C279D5GACTU和C0603C279D1GACTU的区别 |
