0805 1nF ±10% 50V X7R
1000pF ±10% 50V Ceramic Capacitor X7R 0805 2012 Metric
得捷:
CAP CER 1000PF 50V X7R 0805
艾睿:

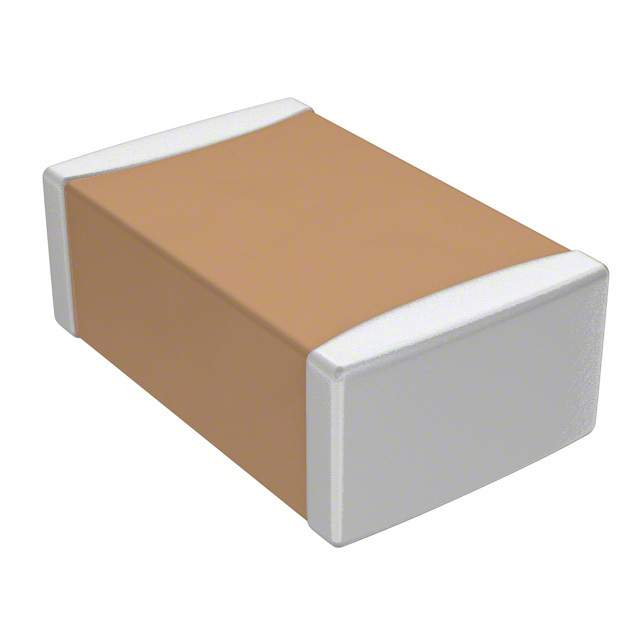

Get more with less with Samsung Electro-Mechanics&s; CL21B102KB65PNC multilayer ceramic capacitor which uses multiple layers of ceramic and metal to act as dielectric and electrodes. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a tolerance of 10%. Its capacitance value is 0.001uF. This product is 2 mm long, 0.6 mm tall and 1.25 mm deep.
Verical:
Cap Ceramic 0.001uF 50V X7R 10% Pad SMD 0805 125C Automotive T/R
儒卓力:
**KC1,0nF0805 10%50V X7R ASTAGOM **
额定电压DC 50 V
电容 1000 pF
容差 ±10 %
产品系列 Automotive
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.6 mm
封装公制 2012
封装 0805
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CL21B102KB65PNC Samsung 三星 | 当前型号 | 当前型号 |
CL21B102KB65PND 三星 | 类似代替 | CL21B102KB65PNC和CL21B102KB65PND的区别 |
CL21B102KBANNNC 三星 | 功能相似 | CL21B102KB65PNC和CL21B102KBANNNC的区别 |
CL21B102KBCNNNC 三星 | 功能相似 | CL21B102KB65PNC和CL21B102KBCNNNC的区别 |
