MLCC-多层陶瓷电容器
MLCC-多层陶瓷器
得捷:
CAP CER 0.68UF 6.3V X7R 0603
艾睿:

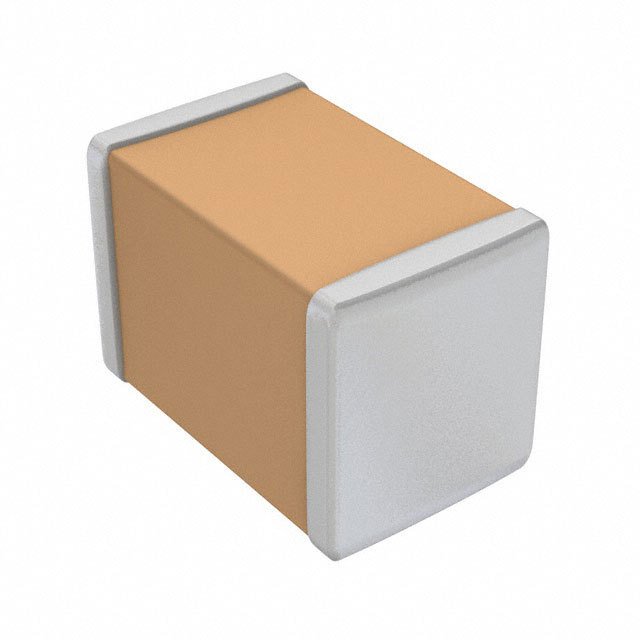

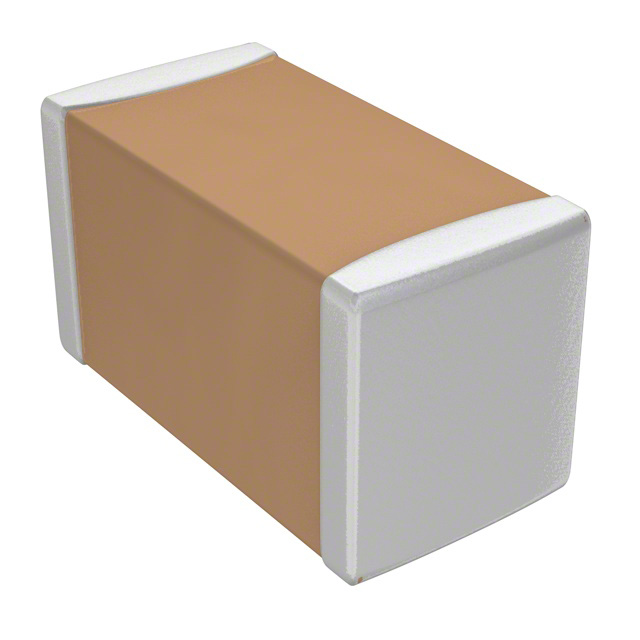

This CL10B684KQ8NNNC multilayer ceramic capacitor MLCC from Samsung Electro-Mechanics consists of alternating layers of ceramic, which acts as the dielectric, and a metal layer, which acts as the electrodes. It can withstand a voltage of 6.3 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its capacitance value is 0.68uF. It has a tolerance of 10%. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep.
额定电压DC 6.30 V
绝缘电阻 10000 MΩ
电容 680 nF
容差 ±10 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 6.3 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
厚度 0.8 mm
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CL10B684KQ8NNNC Samsung 三星 | 当前型号 | 当前型号 |
CGJ3E2X7R0J684K080AA 东电化 | 功能相似 | CL10B684KQ8NNNC和CGJ3E2X7R0J684K080AA的区别 |
0603B684K6R3CT 台湾华科 | 功能相似 | CL10B684KQ8NNNC和0603B684K6R3CT的区别 |
0603B684K6R3NT 风华高科 | 功能相似 | CL10B684KQ8NNNC和0603B684K6R3NT的区别 |
