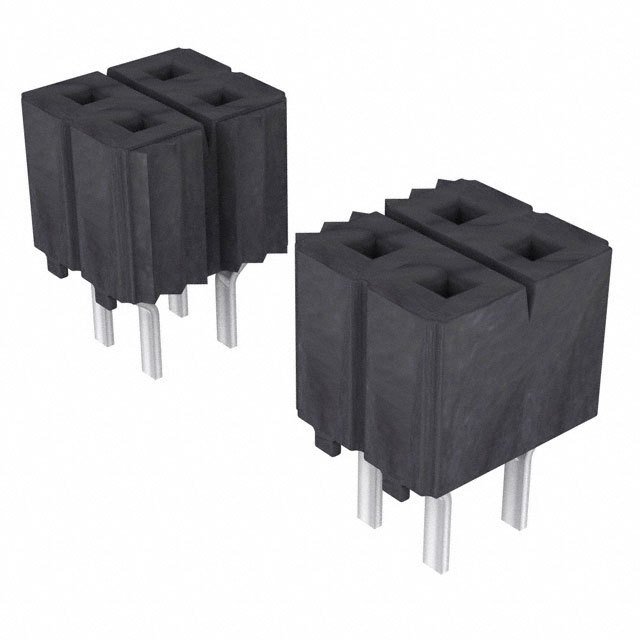

CES-123-01-T-D

SAMTEC CES-123-01-T-D Board-To-Board Connector, 2.54mm, 46Contacts, Receptacle, CES Series, Through Hole, 2Rows

46 位置 插座 0.100"（2.54mm） 通孔 锡

得捷:
CONN RCPT 46POS 0.1 TIN PCB

艾睿:

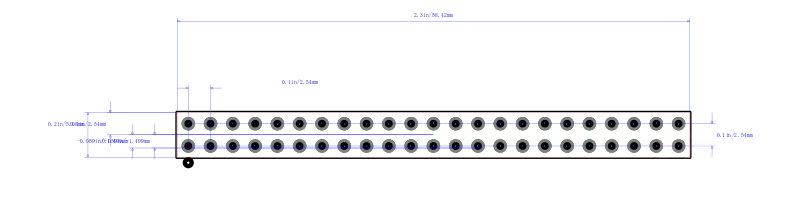

Mount this socket strip CES-123-01-T-D header connector from Samtec on a jumper post on your PCB to support physical configuration options. This SKT connector&s;s 46 contacts that are made out of phosphor bronze and plated with tin over nickel. This is a 2-row connector. Its pitch is 2.54 mm. It has a maximum voltage rating of 400 VAC. It has a socket type gender. It has a straight body orientation. This device has a maximum current rating of 5.5 A/contact. This product is 58.42 mm long, 5.08 mm tall and 5.59 mm deep. This connector has an operating temperature of -55 to 105 °C. CES-123-01-T-D is housed in black polyester. It uses the solder termination method.

Newark:
# SAMTEC  CES-123-01-T-D  Board-To-Board Connector, 2.54 mm, 46 Contacts, Receptacle, CES Series, Through Hole, 2 Rows
