CCMR040.T参数规格_中文资料_数据手册PDF

CCMR040.T概述

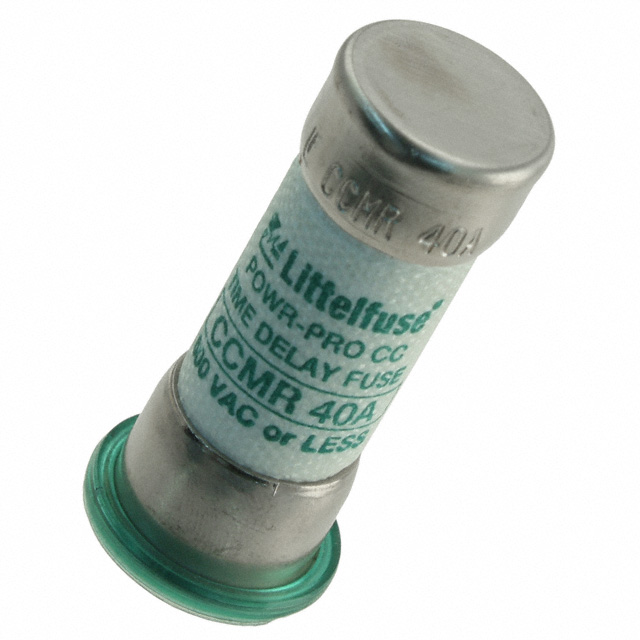

LITTELFUSE CCMR040.T Fuse, Industrial / Power, Class CC, POWR-GARD CCMR Series, 40A, 600VAC, 250VDC, 21.6mm x 47.8mm

Be protected by adding a class cc fuse developed by . This device has a current rating of 40. It has 2 terminals. The CCMR040.T fuse has a cartridge termination style. The maximum AC voltage rating is 600 VAC and the maximum DC voltage rating is 250 VDC. This product is 47.8 mm long with a diameter of 21.6 mm.

CCMR040.T中文资料参数规格

技术参数

额定电压DC 250 V

额定电压AC 600 V

额定电流 40 A

电阻 0.0029 Ω

额定电压 600 V

额定电压DC Max 250 V

额定电压AC Max 600 V

封装参数

引脚数 2

封装 5AG, 10mm x 38.1mm

外形尺寸

长度 47.8 mm

封装 5AG, 10mm x 38.1mm

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买CCMR040.T

型号： CCMR040.T

制造商： Littelfuse 力特

描述：LITTELFUSE CCMR040.T Fuse, Industrial / Power, Class CC, POWR-GARD CCMR Series, 40A, 600VAC, 250VDC, 21.6mm x 47.8mm
