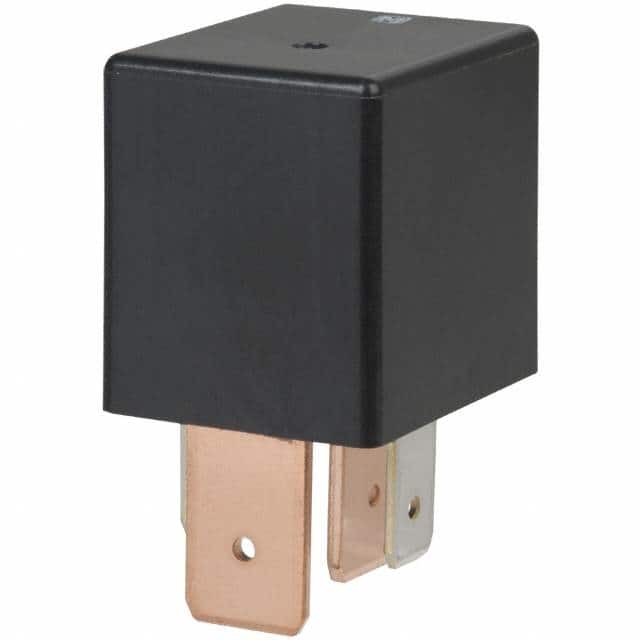

车用继电器 1 Form A, 12VDC with resistor inside
RELAY AUTOMOTIVE SPST 70A 12V
立创商城:
12VDC 70A
得捷:
RELAY AUTOMOTIVE SPST 70A 12V
贸泽:
车用继电器 1 Form A, 12VDC with resistor inside
艾睿:
Electromechanical Relay 12VDC 89.5Ohm 40A SPST-NO 26mm 22mm 36mm Plug-In Automotive Relay Automotive
安富利:
Electromechanical Relay SPST-NO 40A 12VDC 89.5Ohm Plug-In
Chip1Stop:
Relays 12VDC 89.5Ohm 40A SPST-NO26mm 22mm 36mm Plug-In Automotive Relay Automotive
Verical:
Electromechanical Relay 12VDC 89.5Ohm 40A SPST-NO 26mm 22mm 36mm Plug-In Automotive Relay Automotive
MASTER:
Relays 12VDC 89.5Ohm 40A SPST-NO26mm 22mm 36mm Plug-In Automotive Relay Automotive
Electro Sonic:
Relays 12VDC 89.5Ohm 40A SPST-NO26mm 22mm 36mm Plug-In Automotive Relay Automotive
触点类型 SPST-NO
功耗 1800 mW
线圈电压 12 VDC
线圈电流 134 mA
线圈电阻 89.5 Ω
额定电流Max 40 A
线圈电压DC 12 V
线圈功率 1.6 W
额定功率Max 1.8 W
安装方式 Quick Connect, Plug In
封装 -

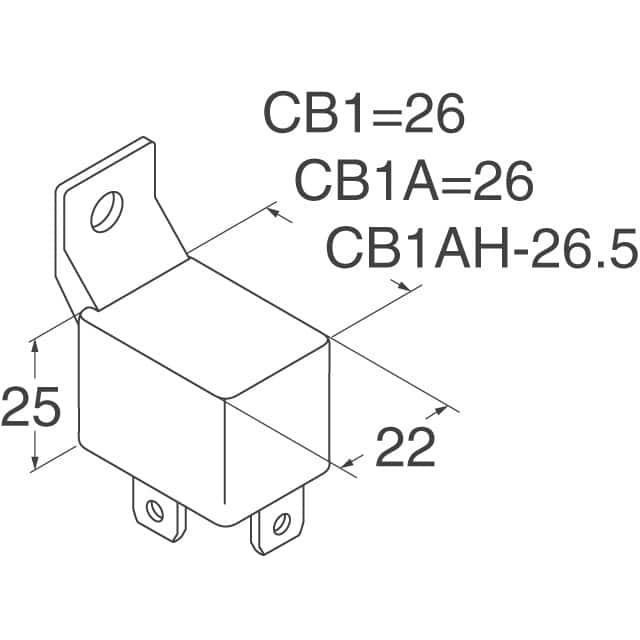

长度 26 mm
宽度 36 mm
高度 22 mm
封装 -
触点材质 Silver
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536410050
