CIG22H4R7MNE

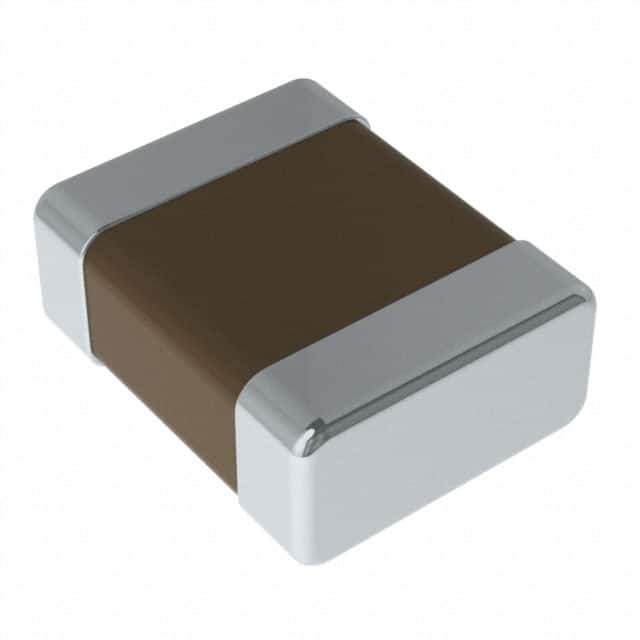

CIG22H4R7MNE图片1
CIG22H4R7MNE图片2
CIG22H4R7MNE图片3
CIG22H4R7MNE图片4
CIG22H4R7MNE概述

1008 4.7uH ±20%

4.7µH Shielded Multilayer Inductor 800mA 233mOhm 1008 2520 Metric


得捷:
FIXED IND 4.7UH 800MA 233MOHM SM


艾睿:
This power chip CIG22H4R7MNE surface mount inductor from Samsung Electro-Mechanics is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a tolerance of 20%. This product is 2.7 mm long, 1.2 mm tall and 2.2 mm deep. This device utilizes multi-layer technology. It has an inductance of 4.7u H. Its test frequency is 1M Hz. This SMD inductor has a maximum DC current of 800m A with a maximum resistance of 233mTyp Ohm.


Verical:
Inductor Power Chip Shielded Multi-Layer 4.7uH 20% 1MHz Ferrite 0.8A 0.233Ohm DCR 1008 T/R


CIG22H4R7MNE中文资料参数规格
技术参数

额定电流 800 mA

容差 ±20 %

电感 4.7 µH

产品系列 CIG

电感公差 ±20 %

测试频率 1 MHz

电阻DC) 233 mΩ

工作温度Max 125 ℃

工作温度Min -40 ℃

封装参数

安装方式 Surface Mount

封装 1008

外形尺寸

高度 1.2 mm

封装 1008

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 3000

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买CIG22H4R7MNE
型号: CIG22H4R7MNE
制造商: Samsung 三星
描述:1008 4.7uH ±20%
