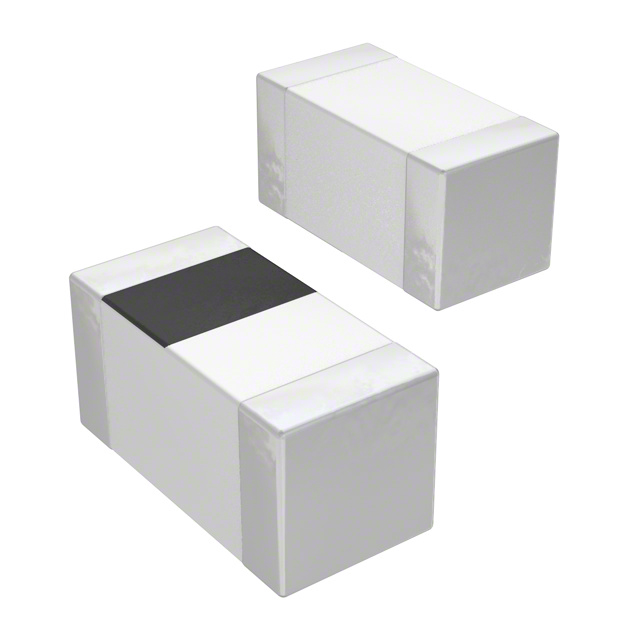

0603 82nH ±5%
无屏蔽 多层 器 950 毫欧最大 0603(1608 公制)
得捷:
FIXED IND 82NH 350MA 950MOHM SMD
艾睿:
An ideal space-saving electronic component is this high frequency chip CIH10T82NJNC surface mount inductor from Samsung Electro-Mechanics. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device is made with multi-layer technology. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 600M Hz. This product is 1.75 mm long, 0.95 mm tall and 0.95 mm deep. This SMD inductor has a maximum DC current of 350m A with a maximum resistance of 950m Ohm. It has a tolerance of 5%. It has an inductance of 82n H.
安富利:
Ind High Frequency Chip Multi-Layer 82nH 5% 100MHz 12Q-Factor Ceramic 350mA 0603 Paper T/R
富昌:
CIH Series 0603 82 nH ±5 % Tolerance 350 mA High Frequency Multilayer Inductor
Verical:
Inductor High Frequency Chip Multi-Layer 0.082uH 5% 100MHz 12Q-Factor Ceramic 0.35A 0.95Ohm DCR 0603 T/R
儒卓力:
**CIH10T 82nH 350mA 5% MLT **
Win Source:
FIXED IND 82NH 350MA 950 MOHM
额定电流 350 mA
容差 ±5 %
电感 0.082 µH
自谐频率 600 MHz
产品系列 CIH
电感公差 ±5 %
测试频率 100 MHz
电阻DC) ≤950 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 0.95 Ω
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.95 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
