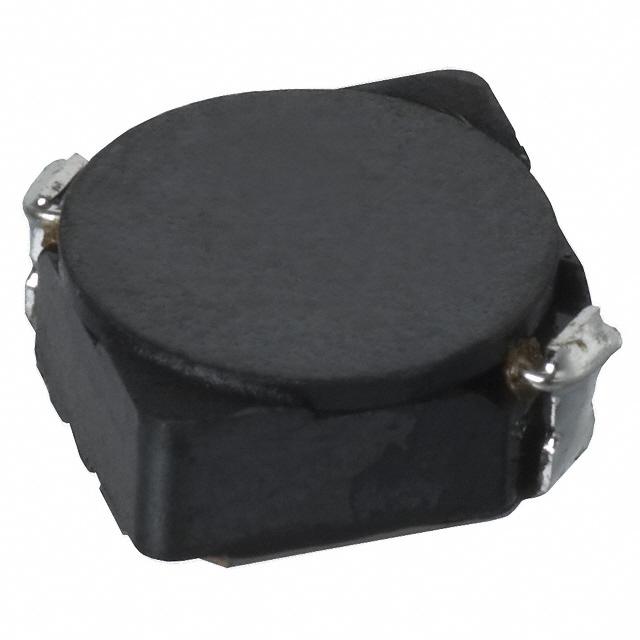

CDRH 系列 6.2 uH 30 % 容差 2.5 A 屏蔽 表面贴装 功率电感
6.2µH Shielded Inductor 2.5A 27mOhm Max Nonstandard
得捷:
FIXED IND 6.2UH 2.5A 27 MOHM SMD
立创商城:
6.2uH ±30% 2.5A 20mΩ
贸泽:
Fixed Inductors 6.2uH 2.5A 30% SMD LP INDUCTOR
艾睿:
This power CDRH6D38NP-6R2NC surface mount inductor from Sumida Corporation is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 100 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its test frequency is 100K Hz. This device utilizes drum core technology. This product is 7 mm long, 4 mm tall and 7 mm deep. This SMD inductor has a maximum DC current of 2.5 A with a maximum resistance of 27m Ohm. It has an inductance of 6.2u H.
安富利:
Ind Power Shielded Wirewound 6.2uH 30% 100KHz Ferrite 2.5A Carrier T/R
Chip1Stop:
Ind Power Shielded Wirewound 6.2uH 30% 100KHz Ferrite 2.5A Carrier T/R
儒卓力:
**CDRH6D38NP 6,2uH 2900mA 30% **
Win Source:
6.2μH Shielded Inductor 2.5A 27 mOhm Max Nonstandard
额定电流 2.5 A
容差 ±30 %
电感 6.2 µH
电感公差 ±30 %
测试频率 100 kHz
电阻DC) ≤27 mΩ
工作温度Max 100 ℃
工作温度Min 40 ℃
电阻DC Max 27 mΩ
安装方式 Surface Mount
封装 7 mm x 7 mm
长度 7 mm
宽度 7 mm
高度 4 mm
封装 7 mm x 7 mm
重量 0.6 g
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CDRH6D38NP-6R2NC Sumida 胜美达 | 当前型号 | 当前型号 |
CDRH6D38-6R2NC 胜美达 | 功能相似 | CDRH6D38NP-6R2NC和CDRH6D38-6R2NC的区别 |
