CDRH104RNP-330NC

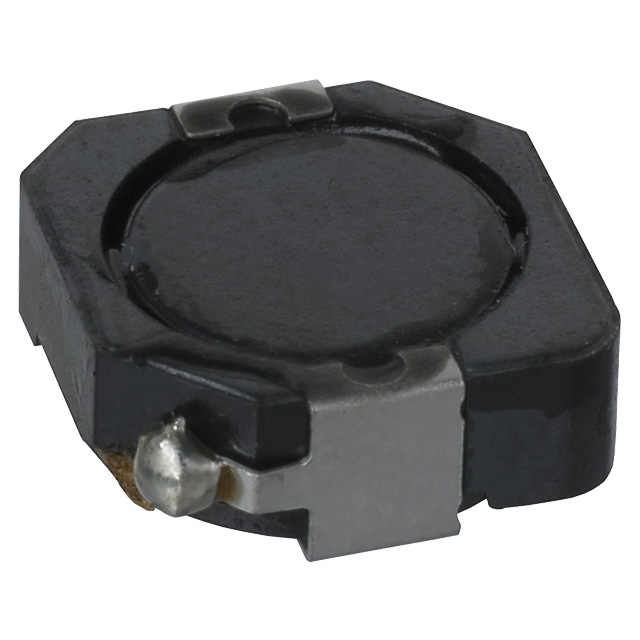

CDRH104RNP-330NC图片1

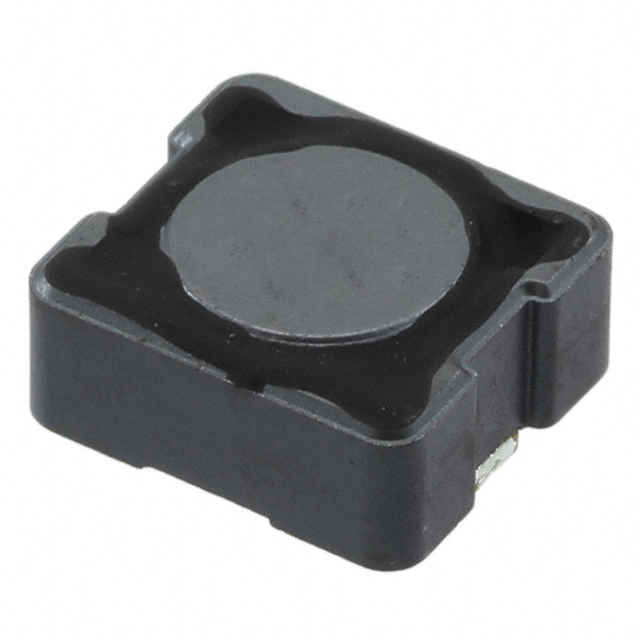

CDRH104RNP-330NC图片2
CDRH104RNP-330NC图片3
CDRH104RNP-330NC图片4
CDRH104RNP-330NC图片5
CDRH104RNP-330NC图片6
CDRH104RNP-330NC图片7
CDRH104RNP-330NC图片8
CDRH104RNP-330NC图片9
CDRH104RNP-330NC概述

33uH ±30% 2.6A

33µH Shielded Inductor 2.2A 93mOhm Max Nonstandard


得捷:
FIXED IND 33UH 2.2A 93 MOHM SMD


立创商城:
33uH ±30% 2.3A 93mΩ


艾睿:
This power CDRH104RNP-330NC surface mount inductor from Sumida Corporation is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -40 °C to 100 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its test frequency is 100K Hz. It has an inductance of 33u H. This product is 10.5 mm long, 4 mm tall and 10.3 mm deep. This SMD inductor has a maximum DC current of 2.2 A with a maximum resistance of 93m Ohm. This device utilizes drum core technology.


安富利:
Ind Power Shielded Wirewound 33uH 30% 100KHz Ferrite 2.2A Carrier T/R


Chip1Stop:
Ind Power Shielded Wirewound 33uH 30% 100KHz Ferrite 2.2A Carrier T/R


儒卓力:
**CDRH104RNP 33uH 2200 mA 30% **


Win Source:
33μH Shielded Inductor 2.2A 93 mOhm Max Nonstandard


CDRH104RNP-330NC中文资料参数规格
技术参数

额定电流 2.2 A

容差 ±30 %

电感 33 µH

产品系列 CDRH104RNP

屏蔽 Yes

电感公差 ±30 %

测试频率 100 kHz

电阻DC) ≤93 mΩ

工作温度Max 100 ℃

工作温度Min -40 ℃

电阻DC Max 0.093 Ω

封装参数

安装方式 Surface Mount

封装 10.5 mm x 10.3 mm

外形尺寸

长度 10.5 mm

宽度 10.3 mm

高度 4 mm

封装 10.5 mm x 10.3 mm

物理参数

重量 1.5 g

工作温度 -40℃ ~ 100℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

香港进出口证 NLR

数据手册

在线购买CDRH104RNP-330NC
型号: CDRH104RNP-330NC
制造商: Sumida 胜美达
描述:33uH ±30% 2.6A
替代型号CDRH104RNP-330NC
型号/品牌 代替类型 替代型号对比

CDRH104RNP-330NC

Sumida 胜美达

当前型号

当前型号

CDRH104R-330NC

胜美达

功能相似

CDRH104RNP-330NC和CDRH104R-330NC的区别
