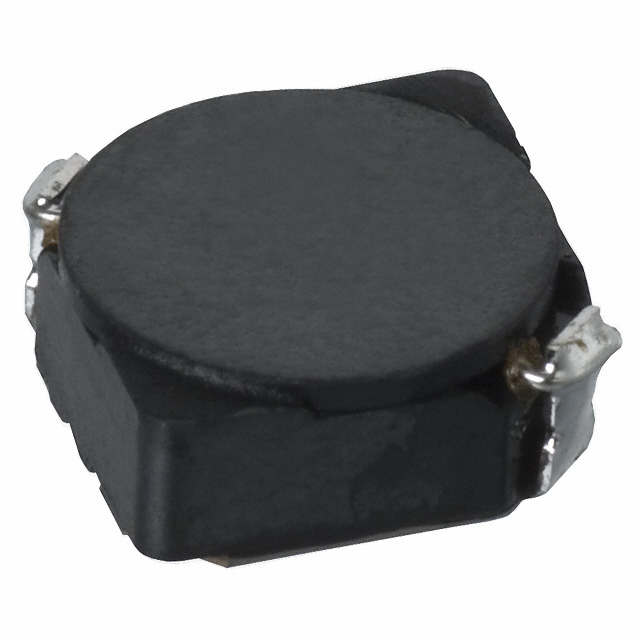

CDRH6D38NP-330NC

CDRH 系列 33 uH 30 % 容差 1.1 A 屏蔽 表面贴装 功率电感

33µH Shielded Inductor 1.1A 124mOhm Max Nonstandard

得捷:
FIXED IND 33UH 1.1A 124 MOHM SMD

立创商城:
33uH ±30% 1.1A 92mΩ

艾睿:
Make any circuit look clean and compact using this power CDRH6D38NP-330NC surface mount inductor from Sumida Corporation. This SMD inductor has an operating temperature range of -40 °C to 100 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 7 mm long, 4 mm tall and 7 mm deep. This device utilizes drum core technology. Its test frequency is 100K Hz. This SMD inductor has a maximum DC current of 1.1 A with a maximum resistance of 124m Ohm. It has an inductance of 33u H.

富昌:
CDRH Series 33 uH 30 % Tolerance 1.1 A Shielded Surface Mount Power Inductor

Verical:
Inductor Power Shielded Drum Core 33uH 30% 100KHz Ferrite 1.1A 0.124Ohm DCR T/R

儒卓力:
**CDRH6D38NP 33uH 1100mA 30% **

Win Source:
33μH Shielded Inductor 1.1A 124 mOhm Max Nonstandard
