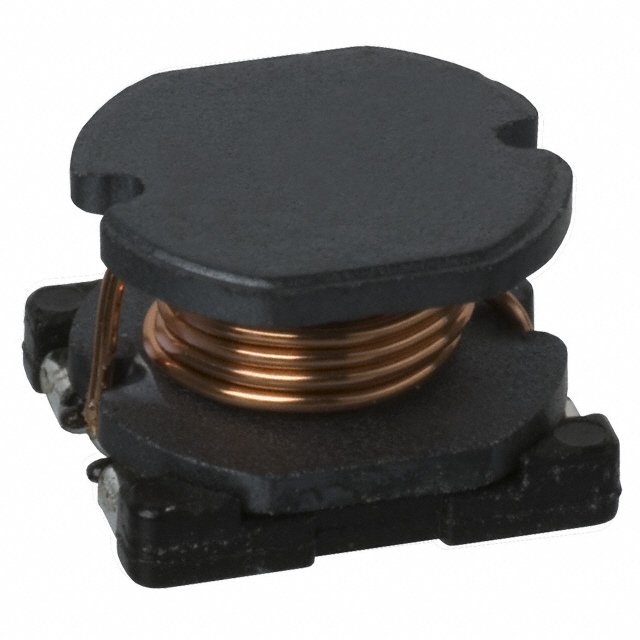

CR75NP-470KC

CR 系列 47 uH 10 % 容差 1.1 A 表面贴装 功率电感

47µH Unshielded Inductor 1.1A 180mOhm Max Nonstandard

得捷:
FIXED IND 47UH 1.1A 180 MOHM SMD

立创商城:
47uH ±10% 180mΩ

艾睿:
An ideal space-saving electronic component is this power CR75NP-470KC surface mount inductor from Sumida Corporation. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 100 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has an inductance of 47u H. This product is 8.1 mm long, 5.5 mm tall and 7.3 mm deep. This SMD inductor has a maximum DC current of 1.1 A with a maximum resistance of 180m Ohm. It has a tolerance of 10%. Its test frequency is 2.52M Hz, while its minimum self-resonant frequency is 13MTyp Hz. This device is made with drum core technology.

安富利:
Ind Power Unshielded Wirewound 47uH 10% 2.52MHz 1.1A Carrier T/R

富昌:
CR 系列 47 uH 10 % 容差 1.1 A 表面贴装 功率电感

Chip1Stop:
Inductor Power Unshielded Drum Core 47uH 10% 2.52MHz Ferrite 1.1A 180mOhm DCR Carrier T/R

儒卓力:
**CR75NP 47uH 1100mA 10% WWT **
